HPE Series

HPE P9H30A

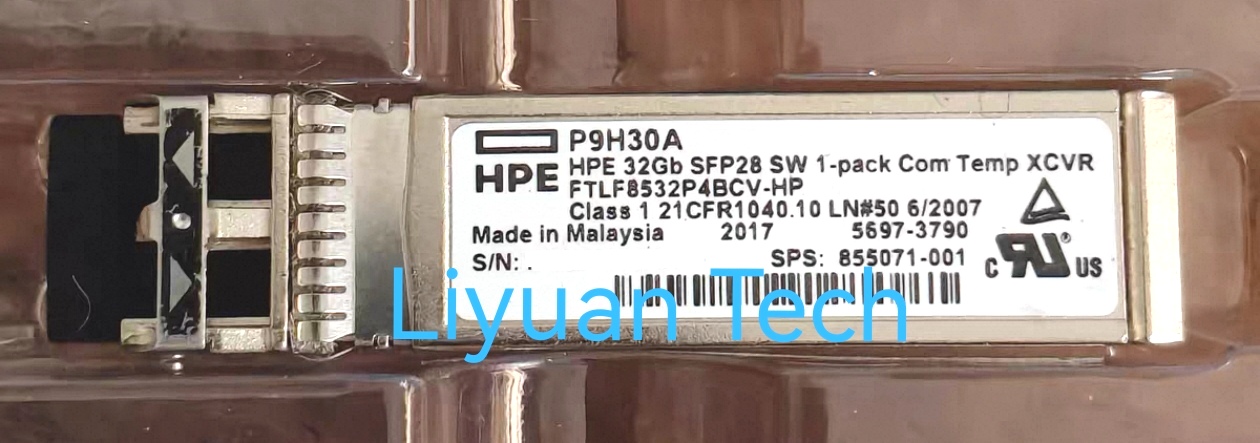

Product description: HPE P9H30A _32G Fibre Channel (32GFC) Short-Wavelength SFP+ Optical Transceiver_liyuan tech
INQUIRY

Brand: HPE
Part Number: P9H30A
Form Factor: SFP+
Data Rate: 32Gbps
Transmission Distance: 100m
Optical Wavelength: 850nm
Product Features
Up To 28.05 Gb/s Bi-directional Data Links
Hot-pluggable Sfp+ Footprint
850nm Oxide Vcsel Laser Transmitter
Duplex Lc Connector
Rohs Compliant
100m Over M5f Mmf (50/125 Mm Om4)
70m Over M5e Mmf (50/125mm Om3)
20m On 50 Mm (om2) Mmf
Metal Enclosure, For Lower Emi
Single 3.3v Power Supply
Operating Temperature Range: 0c To 70c
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
The HPE P9H30A 32Gb SFP28 short-wave commercial temperature transceiver is based on our 32GFC-SFP28-100 product, with the same original parameters from the manufacturer,
and is manufactured according to the same industry standards. This module version is designed for dual-fiber multimode fiber (MMF) optical cables. Its minimum guaranteed fiber budget is 1.8 dB,
which is usually sufficient to cover approximately 100 meters of OM4/OM5 type optical fibers. However, distance is only an indicative parameter for comfort. Finally, when we calculate the distance,
we take into account the minimum (guaranteed) fiber budget and the average attenuation of optical cables in the industry. Our HPE P9H30A compatible transceiver uses a high-quality VSCEL laser emitter,
with a working frequency of 850 nanometers, and is equipped with an 850 nanometer PIN photodiode receiver.
This module supports DDM/DOM optical diagnostics and provides diagnostic data on the current working state. This module is equipped with dual LC connectors,
designed for a standard temperature network environment of 0° - 70°C. This transceiver chipset supports data rates of 8.5 - 28.05 Gbps,
and supports 32G optical channels (28.05 Gbps), 16G optical channels (14.025 Gbps), 8G optical channels (8.5 Gbps), etc. for applications. It should be noted that
The above application support varies depending on the ports used by the module, and during the ordering process, support for application and module speed configuration is provided.
This module supports the same functions as the original manufacturer. This is a versatile transceiver that can be used in various different fields of today's networks.
Therefore, it is the most popular application in the fiber channel infrastructure of data centers.
In addition to HPE P9H30A , Liyuan Tech supply a wide range of other HPE series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
