HPE Series
HPE JH231A
- Product description: HPE JH231A _40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO-12 MMF Optical Transceiver Module_liyuan tech
-
Brand: HPE
Product Name: JH231A
Form Factor: QSFP+
Max. Data Rate: 40Gbps
Wavelength: 850nm
Max. Transmission Distance: 150m
Connector: MTP/MPO-12 Male
Cable Type: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.6~2.4dBm
Receiver Sensitivity: <-5.4dBm
Digital Optical Monitoring: Yes
Receiver Overload: 2.4dBm
Max. Power Consumption: ≤1.5W
Core Size: 50um
Extinction Ratio: >3dB
Modulation: NRZ
Host FEC: Supported
Modal Bandwidth: 2000 (OM3) MHz*km, 4700 (OM4) MHz*km
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3 40GBASE-SR4, SFF-8436
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.

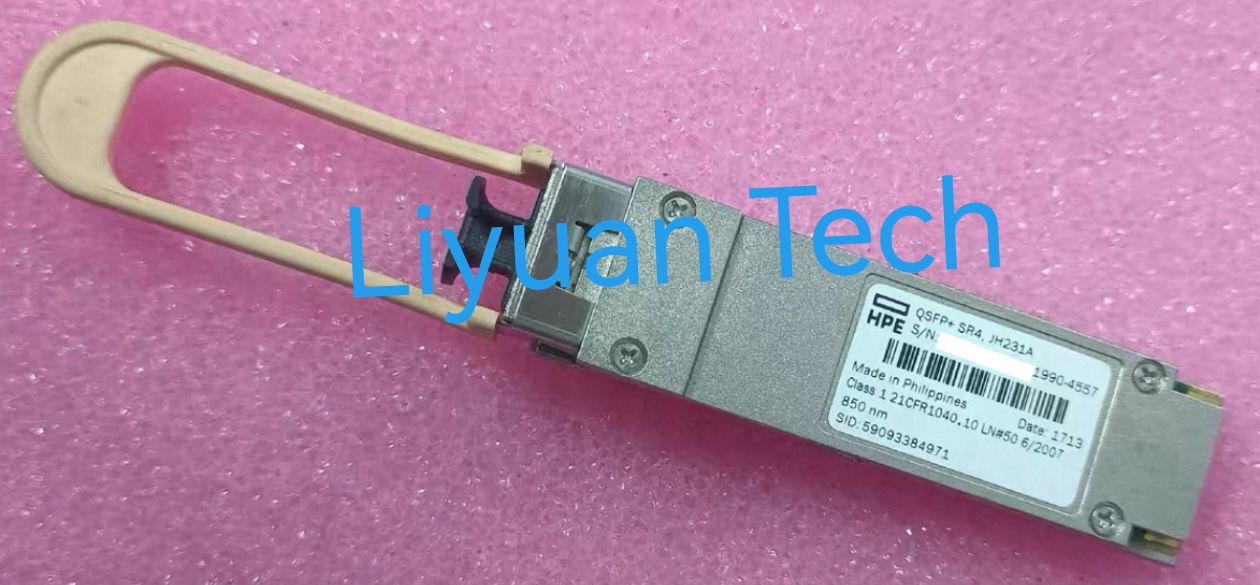

HPE Aruba JH231A 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)
HPE Aruba JH231A The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3).
This transceiver is compliant with IEEE 802.3 40GBASE-SR4 standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces.
Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parametres.
With its easy installation and hot-swappable design, this transceiver is ideal for various applications, including campus, data centre, cloud deployments,
high-performance computing environments, and interconnections between switches, routers, servers,
In addition to HPE JH231A , Liyuan Tech supply a wide range of other HPE series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
