HPE Series
HPE J4858C
- Product description: HPE J4858C _Aruba X121 SFP Transceiver, 1G SFP, LC SX, MMF_liyuan tech
-
Brand: HPE
Part Number: J4858C
Type: HP X121 1G SFP LC SX Transceiver
Ports: 1 LC 1000Base-SX port (IEEE 802.3z Type 1000Base-SX), Duplex: full only
Cabling distance (maximum): 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth), 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth),
2-500 m (50 µm core diameter, 400 MHz*km bandwidth), 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
Dimensions: 2.24 width x 0.54 depth x 0.486 in. height
Weight: 0.04 lb.
Product Number: J9054C
Type: HPE X111 100M SFP LC FX Transceiver
Ports: 1 LC 100BASE-FX port (IEEE 802.3u Type 100BASE-FX); Duplex: half or full
Product Number: J4858C
HP X121 1G SFP LC SX Transceiver
Ports: 1 LC 1000Base-SX port (IEEE 802.3z Type 1000Base-SX), Duplex: full only
Nominal wl (nm) & encoding type: Single lane, 850 1x1G NRZ
Fiber mode: MMF
Fiber diameter (µm): 50/125
Modal bandwidth (MHz*km): 500 (OM2), 400
Transmission distance: 550m (1804.46 ft), 500 m (1640.42 ft)
Connector: Duplex LC (PC or UPC)
Transmit power: –9.5 to 0 dBm
Receive power: –17 to –3 dBm
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Aruba J4858C Overview

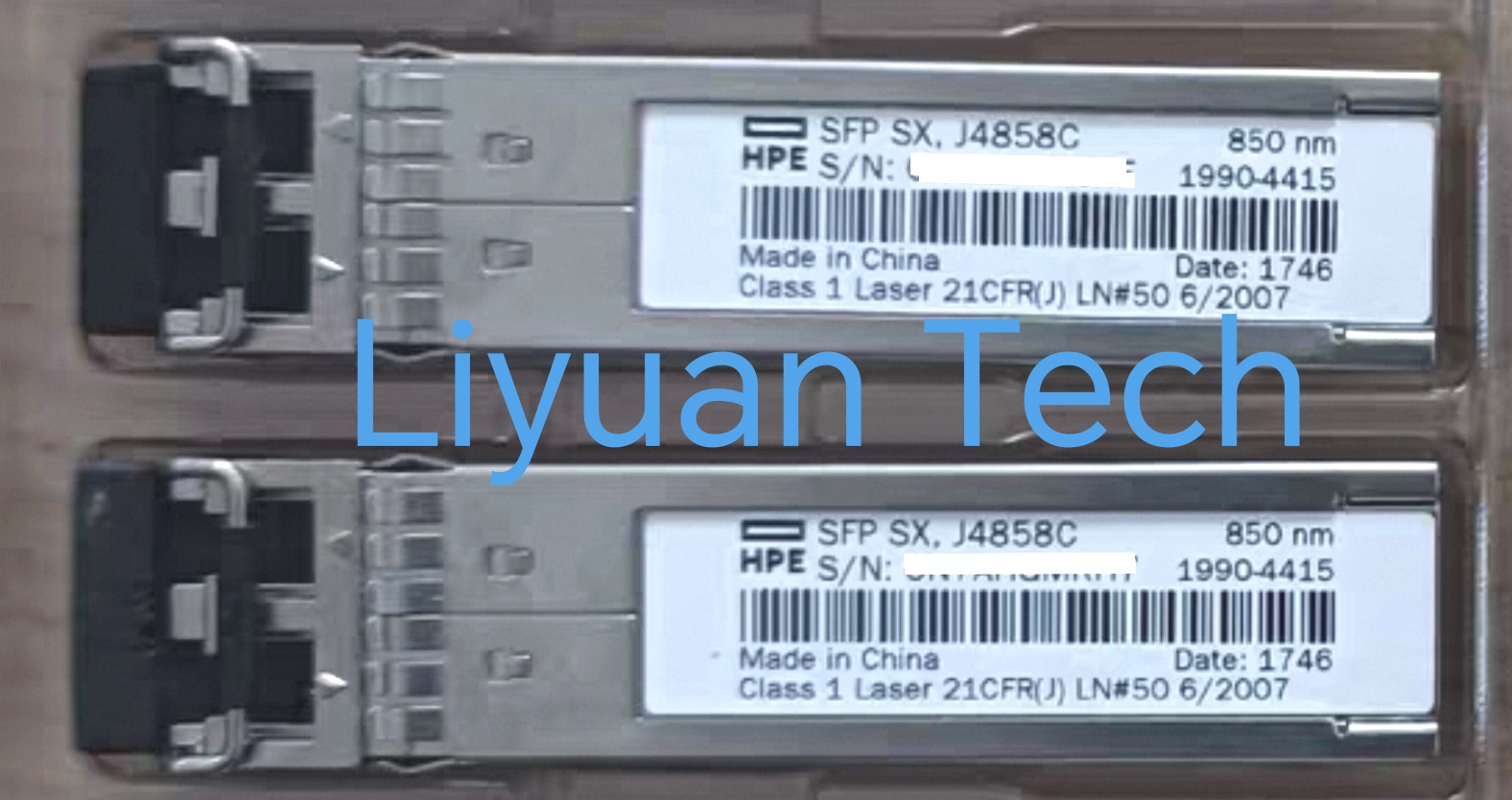

HPE J4858C is a HP X121 1G SFP LC SX Transceiver. It’s a small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550 m on multimode fiber.
In addition to HPE J4858C , Liyuan Tech supply a wide range of other HPE series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
