HPE Series

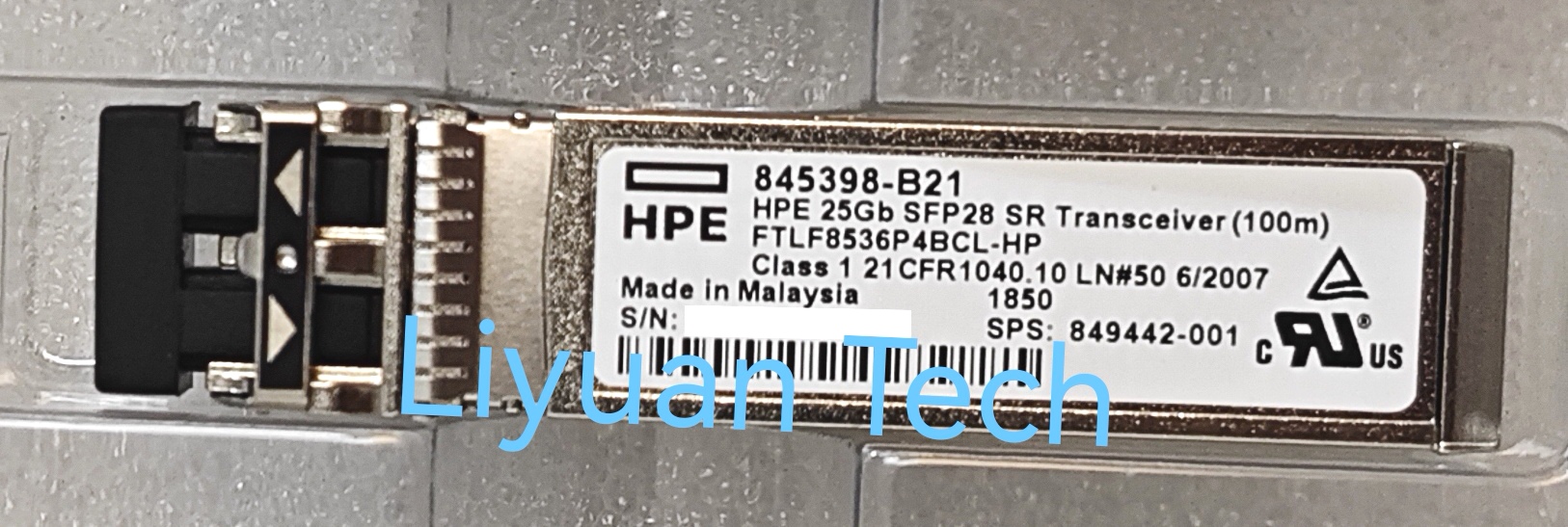

HPE 845398-B21

Product description: HPE 845398-B21 _25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module_liyuan tech
INQUIRY

Brand: HPE
Product Name: 845398-B21
Form Factor: SFP28
Max Data Rate: 25Gbps
Wavelength: 850nm
Max Cable Distance: 100m
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -8.4~2.4dBm
Minimum Receiver Power: <-5.6dBm
Power Budget: 2.8dB
Receiver Overload: 2.4dBm
Power Consumption: ≤1W
Extinction Ratio: ＞2dB
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Inbuilt FEC: Yes
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: SFF-8472, SFF-8024, SFF-8431, SFF-8432
DDM/DOM: Supported
Core Size: 50/125 µm
Packaging Technology: COB Packaging
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
HPE Aruba 845398-B21 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)
The HPE Aruba 845398-B21 SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3).
The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least,
and the built-in DDM/DOM functions monitor the real-time operating status. This hot-swappable transceiver is pre-programmed, uniquely serialized,
and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade.
Each SFP28 transceiver module is individually tested on targeted switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI,
and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data centre.
In addition to HPE 845398-B21 , Liyuan Tech supply a wide range of other HPE series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
