HPE Aruba Series

HPE JD094B

Product description: HPE JD094B _10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver_liyuan tech
INQUIRY

Brand: HPE
Part Number: JD094B
Form Factor: SFP+
Max. Data Rate: 10Gbps
Wavelength: 1310nm
Max. Transmission Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2~0.5dBm
Receiver Sensitivity: <-14.4dBm
Power Budget: 6.2dB
Receiver Overload: 0.5dBm
Max. Power Consumption: ≤1W
Extinction Ratio: >3.5dB
Core Size: 9/125µm
Modulation: NRZ
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI.
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.

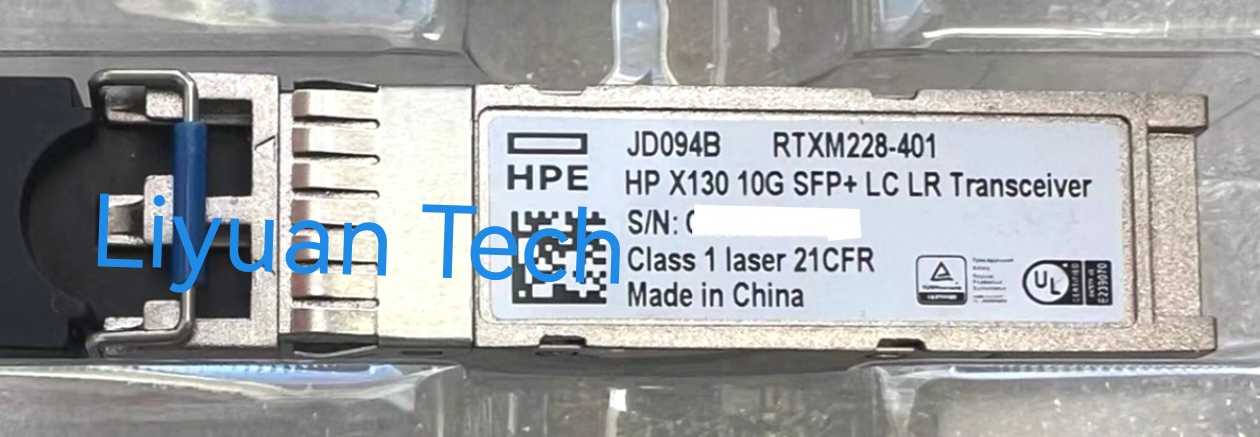

HPE JD094B 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
HPE JD094B SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fibre. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed,
this 10G SFP+ transceiver is ideal for data centre, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
In addition to HPE JD094B , Liyuan Tech supply a wide range of other HPE Aruba series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
