菲尼萨系列

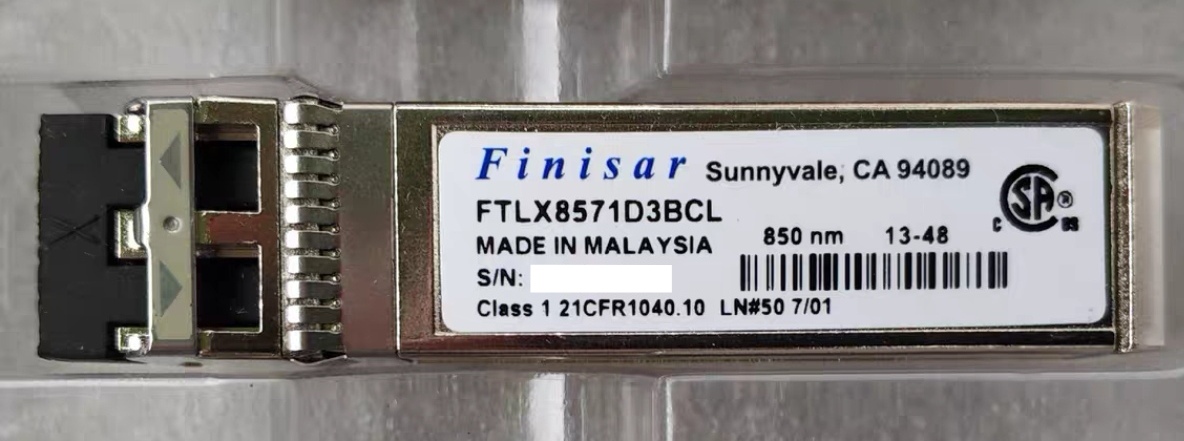

FINISAR FTLX8571D3BCL
- 产品描述：FINISAR FTLX8571D3BCL_10GBase-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)_liyuan tech
-
Manufacturer: FINISAR
Part number: FTLX8571D3BCL
Form Type: SFP+
Transceiver Type: SR
Speed Description: 10-Gigabit
Wavelength: 850nm
Media: MMF
Reach: 300m
DDM: DDM
Connector: LC
DOM: DOM
Country of Origin: MY
Finisar FTLX8571D3BCL, SFP+ Product Overview:
Model: FTLX8571D3BCL
Type: SFP+ (Small Form-factor Pluggable) optical module
Rate: 10Gbps (compatible with 8.5Gbps and 9.95Gbps)
Transmission Distance: Up to 300 meters (multi-mode fiber, OM3/OM4)
Wavelength: 850nm (VCSEL laser)
Interface: Duplex LC interface
Protocol Support: Compliant with IEEE 802.3ae 10GBASE-SR/SW standard, compatible with SFP+ MSA specification
Key Features
1. High-performance Transmission
Supports 10G Ethernet, Fibre Channel (8G/16G), and OTU2 applications.
Low power consumption design (typical power consumption <1W), suitable for high-density deployment.
2. Multi-mode Fiber Compatibility
Transmission distance up to 300 meters when using OM3 fiber, up to 400 meters when using OM4 fiber.
3. Digital Diagnostic Function (DDM/DOM)
Real-time monitoring of the module's temperature, voltage, bias current, transmit/receive optical power, facilitating network maintenance.
4. Industrial-grade Reliability
Operating temperature range: 0°C to +70°C (commercial grade) or -40°C to +85°C (industrial grade optional).
Complies with RoHS environmental standards.
5. Plug-and-Play
Supports hot swapping, compatible with mainstream switch brands (such as Cisco, HPE, Juniper, etc.).
Typical Applications
10G short-distance interconnection in data centers
Enterprise network backbone connection
Storage Area Network (SAN)
High-performance computing (HPC)
Certification and Compliance
Passed CE, FCC, UL certifications
Complies with IEEE 802.3ae, SFF-8431, SFF-8472 standards.
In addition to FINISAR FTLX8571D3BCL , Liyuan Tech supply a wide range of other Finisar Series . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
