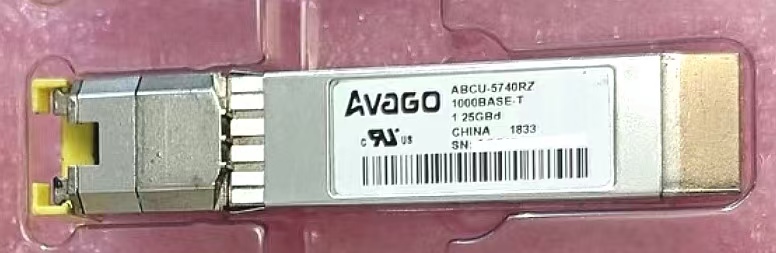

AVAGO ABCU-5740RZ
- 产品描述：AVAGO ABCU-5740RZ_SFP 10/100/1000Base-T (RJ45, Copper, 100m)_liyuan tech
-
Manufacturer: AVAGO
Part number: ABCU-5740RZ
Facteur de forme : SFP
Débit de données : 1,25 Gbd
Application : Ethernet
Tension - Alimentation : 3,3 V
Type de montage : Enfichable, SFP
Reach: 100m
DDM: DDM
Connector: RJ-45
DOM: DOM
Country of Origin: China
AVAGO ABCU-5740RZ is an electrical interface module used for data transmission via twisted pair cables (such as Cat5e/Cat6) rather than optical fibers.
Product Description
1. Model: ABCU-5740RZ (Avago/Broadcom model)
The commercial model may be labeled as **SFP-1.25G-RJ-45-100M, indicating its support for a 1.25Gbps rate and a 100-meter transmission distance.
2. Interface Type: RJ-45 Electrical Port: Connected via twisted pair cables (such as Cat5e/Cat6), compatible with 10/100/1000Base-T (gigabit Ethernet) and 1.25Gbps (such as fiber channels or specialized applications).
3. Rate and Protocol
Supports 1.25Gbps (commonly found in fiber channels or proprietary protocols), and is backward compatible with:
1000Base-T (gigabit Ethernet)
100Base-TX (fast Ethernet)
10Base-T (10-megabit Ethernet, some models may not support it).
4. Transmission Distance
Maximum transmission distance: 100 meters (dependent on the quality of the twisted pair cable, such as Cat5e/Cat6).
5. Physical Characteristics
SFP (Small Form-factor Pluggable) standard, hot-swappable design.
Operating temperature range: Typically 0°C to 70°C (commercial grade).
Power supply voltage: 3.3V, compliant with SFP MSA standards.
6. Application Scenarios
Used for SFP ports of switches, routers, or servers, providing electrical connection.
Commonly found in enterprise networks, data centers, and scenarios requiring short-distance copper cable connections in telecommunications equipment.
7. Compatibility
It is necessary to confirm compatibility with the primary equipment (such as Cisco, HPE, etc. may require specific models or codes).
8. Certification and Standards
Complies with IEEE 802.3 (Ethernet), SFP MSA (Multi-Source Agreement) standards.
May be certified through RoHS, FCC, etc. Notes for Attention
Difference from optical module: The term "optical transceiver" in the name may be misleading. This module is an electrical port (RJ-45) rather than an optical module (which requires an optical fiber for use).
Rate flexibility: 1.25 Gbps is typically used for special applications (such as fiber channel), while in most scenarios it is used as a gigabit electrical port module.
Alternative models: Similar products include Finisar FCLF-8521-3, Cisco GLC-T, etc., but be aware of compatibility.
In addition to AVAGO ABCU-5740RZ , Liyuan Tech supply a wide range of other Optical transceiver transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
