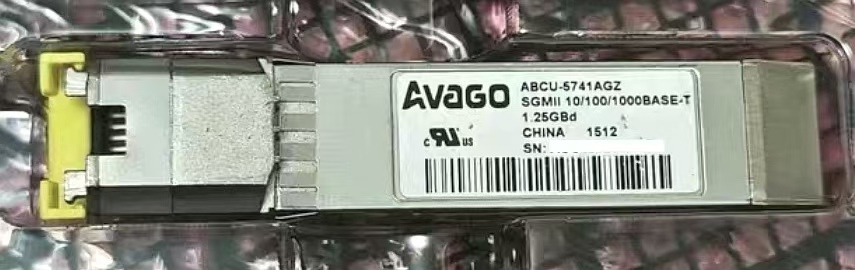

AVAGO ABCU-5741AGZ

产品描述：AVAGO ABCU-5741AGZ_10/100/1000Base-TX SFP Transceiver (Copper, 100m, RJ-45, -40 to 85C)_liyuan tech
在线订购

Manufacturer: AVAGO
Part number: ABCU-5741AGZ
Form Type: SFP
Transceiver Type: TX
Speed Description: 1-Gigabit
Wavelength: N/A
Media: Copper
Reach: 100m
DDM: DDM
Connector: RJ-45
DOM: DOM
Country of Origin: China
AVAGO ABCU-5741AGZ is a SFP (Small Form-factor Pluggable) module product overview:
1. Model: ABCU-5741AGZ
Complies with the SFP MSA (Multi-Source Agreement) standard and supports hot plugging.
Interface: RJ-45 (electrical port), used for copper cable connection, not for optical fiber.
2. Rate and Protocol
Supports 10/100/1000Mbps auto-negotiation, compatible with Fast Ethernet (100M) and Gigabit Ethernet (1G).
Complies with IEEE 802.3 (Ethernet), 802.3u (Fast Ethernet), and 802.3ab (Gigabit Ethernet) standards.
3. Physical Interface
RJ-45 port: Transmits through Cat5e/Cat6 copper cables, with a maximum transmission distance of approximately 100 meters (depending on cable quality).
Operating temperature range: Typically commercial grade (0°C to 70°C) or industrial grade (-40°C to 85°C, confirmation of specific model required).
4. Power Supply and Power Consumption
Supply voltage: 3.3V (typical SFP standard).
Low power consumption design, specific power consumption should refer to the datasheet (usually <1W).
5. Application Scenarios
Used for Gigabit electrical port connections in switches, routers, servers, and other devices.
Replaces fixed RJ-45 ports, providing flexible modular configuration.
Key Features
Auto-negotiation rate: Automatically matches 10M/100M/1000M devices.
Compatibility: Supports mainstream brand switches (such as Cisco, HPE, Juniper, etc., compatibility list confirmation required).
DDM/DOM support (optional): Some models support digital diagnostic monitoring (temperature, voltage, optical power, etc., but may not be applicable to electrical port modules).
Notes
Not an optical module: The RJ-45 interface is an electrical port and does not require optical fiber. It should be distinguished from SFP optical modules (such as SFP-1G-SX/LC).
Alternative models: There may be similar models in the Broadcom/Avago series (such as ABCU-5711AGZ), and specifications should be verified.
In addition to AVAGO ABCU-5741AGZ , Liyuan Tech supply a wide range of other Optical transceiver transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
