Optical transceiver

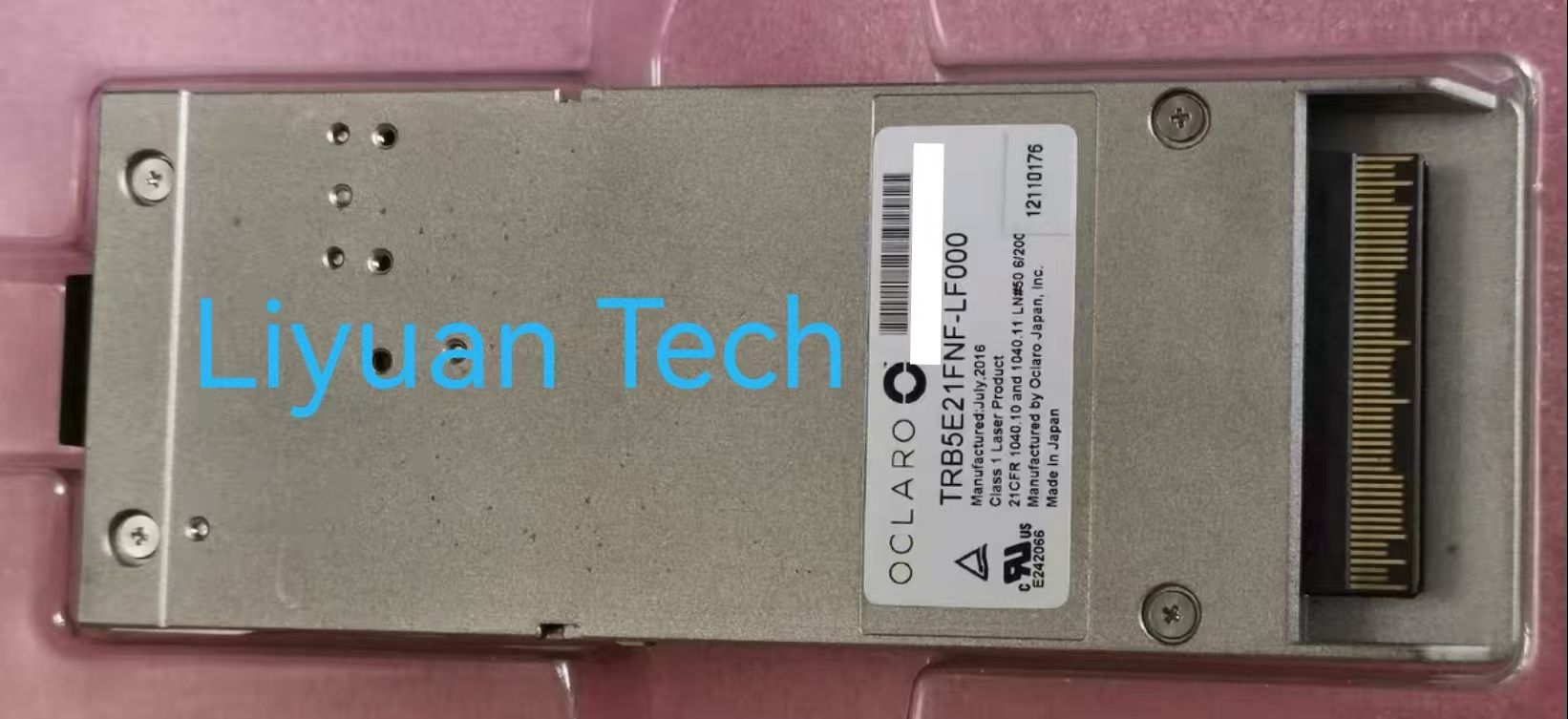

OCLARO TRB5E21FNF-LF000
- Product description: OCLARO TRB5E21FNF-LF000_100Gb/s CFP2 LR4 OTU4 GEN2 Dual Rate 1310nm-SM 10km_Liyuan tech
-
Manufacturer: OCLARO
Part number: TRB5E21FNF-LF000
Form Type: CFP2
Speed Description: 100-Gigabit
Reach: 10km
Wavelength: 1310NM
Transceiver Type: LR4
Media: SMF
Connector: Duplex LC
DOM: DOM
DDM:DDM
Availability: Used
Lead time-7days
Trading terms: TT
Warranty period: 180days
Country of Origin: Japan
OCLARO TRB5E21FNF-LF000 is a product description of a 100G CFP2 optical transceiver module that complies with industry standards:
1. Packaging: CFP2. This is a more compact, lower power, and higher port density pluggable module design compared to earlier CFPs. It supports hot swapping.
2. Transmission rate: 100 Gigabit Ethernet (100GbE).
Designed to meet the requirements of high-speed network backbone and data center interconnection.
3. Transmission distance: 10 kilometers (10KM).
This is a medium-long distance transmission module, suitable for campus network connections, metropolitan area access, or short-distance interconnection between data centers.
4. Wavelength: 1310nm.
This wavelength is typically associated with the LR4 standard. The module uses wavelength division multiplexing (WDM) technology, multiplexing 4 different wavelengths on a single-mode fiber,
typically distributed around 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm, all within the 1310nm window, with each channel carrying 25Gbps of data, combined to achieve a 100Gbps rate.
5. Fiber type: Single-mode fiber (SMF). This is necessary for a 10-kilometer transmission distance.
6. Interface standard: 100GBASE-LR4. This is an IEEE-defined standard, clearly specifying the WDM technology using the 1310nm window on single-mode fiber for 10-kilometer transmission. The module fully complies with this standard.
7. Connector type: Duplex LC. The module front end has two LC interfaces (one for transmitting Tx and one for receiving Rx), connected using a standard duplex LC-LC single-mode fiber jumper.
8. Electrical interface: Host side is 10x10G CAUI-4 or 4x25G CAUI-4.
The CFP2 module is connected to the host device (such as a switch or router) through a connector containing multiple electrical channels. For 100G rate, it typically uses 10 10Gbps channels or 4 25Gbps channels.
9. Power consumption: The suffix `LF000` usually indicates "Low Power" (low power consumption).
The power consumption is typically below 5W (for example, a range of 3.5W - 4.5W is a common low power consumption target). This is an important advantage of the CFP2 module.
10. Application scenarios: Interconnection between 100G Ethernet switches and routers. Medium-distance connections within data centers or between data centers.
Enterprise network core or aggregation layer. Telecommunication operator's campus access and aggregation network.
Summary of product description:
OCLARO TRB5E21FNF-LF000 is a 100Gbps optical module with CFP2 packaging that complies with the 100GBASE-LR4 standard.
It achieves the farthest 10-kilometer transmission distance using the wavelength division multiplexing technology in the 1310nm wavelength window.
This module has a duplex LC interface and is a low-power design, specifically designed for data centers, enterprises, and telecommunications network applications that require high bandwidth and medium-long distance connections.
In addition to OCLARO TRB5E21FNF-LF000 , Liyuan Tech supply a wide range of other Optical transceiver transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
