Finisar Series

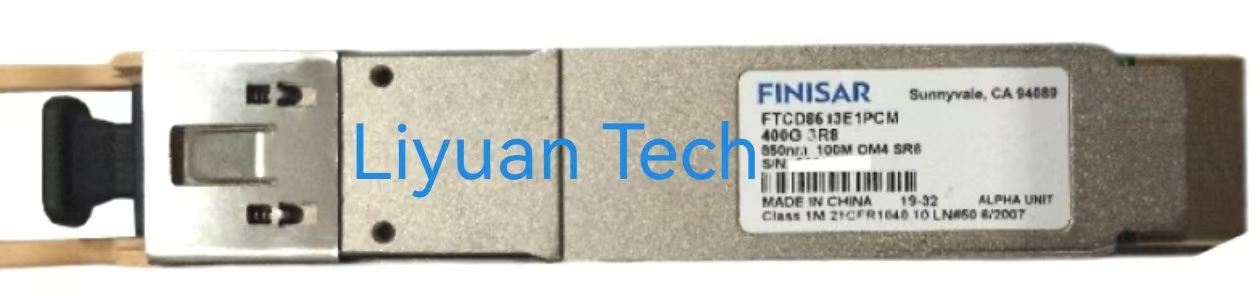

FINISAR FTCD8613E1PCM

Product description: FINISAR FTCD8613E1PCM_400GBASE-SR8 QSFP-DD Optical Transceiver_liyuan tech
INQUIRY

Manufacturer: FINISAR
Part number: FTCD8613E1PCM
Protocol: 400G Ethernet Compliant
Distance: 100 m
Wavelength: 850nm Band
Data Rate (max): 425 Gb/s
Connector: MPO-16 APC
Diagnostics: Digital
Transmitter: 8x PAM4 VCSEL
Receiver: PIN
Voltage Supply: 3.3
Hot-pluggable QSFP-DD form factor
Power dissipation <10W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 fiber with KP4 FEC
8x50G PAM4 VCSEL transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface aligned with IEEE 802.3bs
MPO-16 APC connector
I2C management interface
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Availability: Used
Lead time-7days
Trading terms: TT
Warranty period: 180days
Country of origin: China
FTCD8613E1PCM QSFP-DD SR8 transceiver modules are designed for use in Gigabit Ethernet links on up to 70m on OM3
MMF or 100m on OM4 MMF. They are compliant with the QSFP-DD MSA and portions of IEEE P802.3bs. Digital
diagnostic functions are available via the I2C interface, as defined by the CMIS 4.0. The optical transceiver is RoHS
compliant as described in Application Note AN-2038
In addition to FINISAR FTCD8613E1PCM , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
