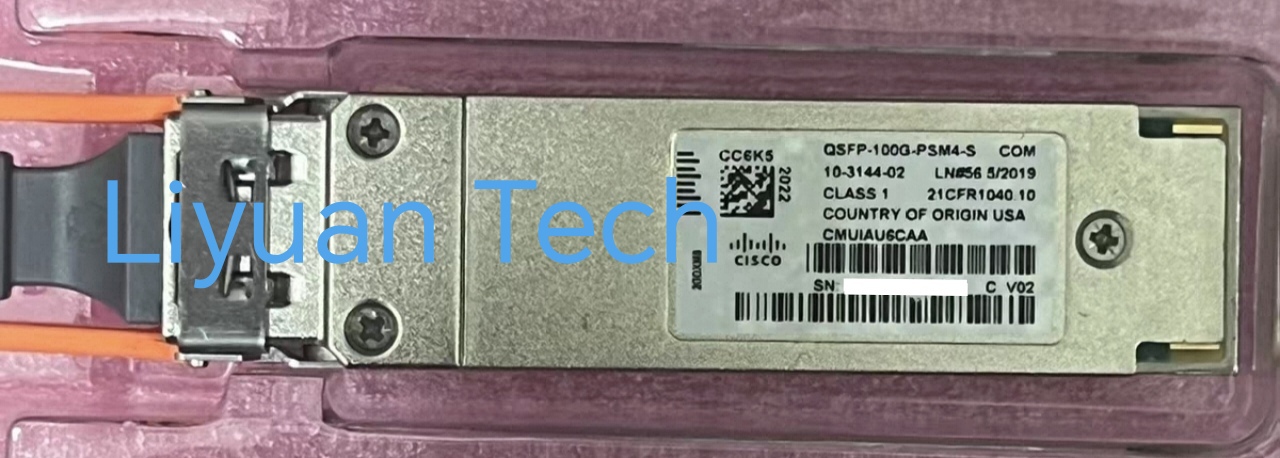

Cisco QSFP-100G-PSM4-S
- Product description: Cisco QSFP-100G-PSM4-S _QSFP-100G PSM4 Transceiver, 100G QSFP/500m SMF/MPO_liyuan tech
-
Manufacturer: Cisco
Part number: QSFP-100G-PSM4-S
Form Factor: QSFP
Max. Data Rate: 100GB
Cable Distance: 500m
Nominal Wavelength (nm): 1310
Cable Type: SMF
Description: 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
Dimensions: 13.5 x 18.4 x 72.4 mm
Core Size (Microns): G.652
Modal Bandwidth (MHz*km): \
Power Consumption (W): 3.5
Product Details
Pull Tab Color: Orange
QSFP-100G Optical modulesprovide these highlights:
Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
High-speed electrical interface compliant to IEEE 802.3bm
Transmit Power (dBm) per lane*2: Max:+2.0, Min:-9.4
Receive Power (dBm) per lane*2*3: Max:+2.0, Min: -12.66
Receive Power (dBm) per lane: 1295 to 1325
2 Transmitter and receiver power is average optical power, unless specified
3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation
Environmental Conditions and Power Requirements
Commercial temperature: 0 to 70°C (32 to 158°F)
Storage temperature: -40 to 85°C (-40 to 185°F)
Regulatory and Standards compliance
Standards:
SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013
SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014
802.3™-2012 IEEE Standard for Ethernet
IEEE 802.3ba Amendment of IEEE Std 802.3-2012
IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)
GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
RoHS 6
Safety: Cable jacket of QSFP copper modules is UL E116441 Compliant: QSFP copper cables are ELV compliant
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Cisco QSFP-100G-PSM4-S= Overview
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density,
and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers,
and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.
In addition to Cisco QSFP-100G-PSM4-S , Liyuan Tech supply a wide range of other Cisco Series transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
