Juniper Series

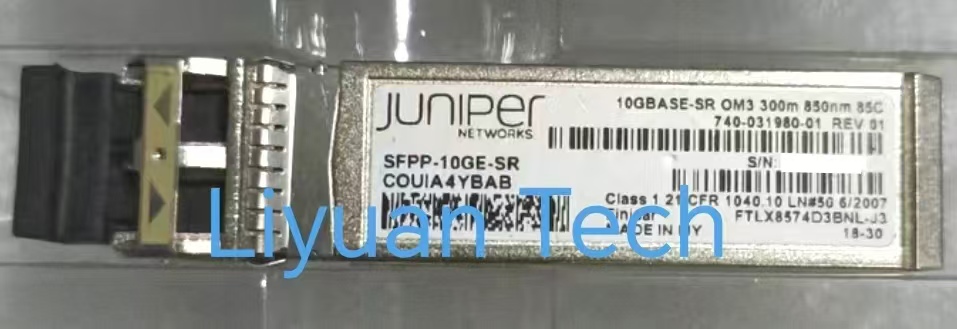

Juniper 740-031980-01 SFPP-10GE-SR
- Product description: Juniper 740-031980-01 SFPP-10GE-SR _10GBASE-SR SFP+ 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module_liyuan tech
-
Manufacturer: Juniper
Part number: 740-031980-01 SFPP-10GE-SR
CLEI: COUIA4YBAB
Form Factor: SFP+
Max. Data Rate: 10Gbps
Wavelength: 850nm
Max. Transmission Distance: 300m@OM3/400m@OM4
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.3~-1dBm
Receiver Sensitivity: < -11.1dBm
Power Budget: 3.8dB
Receiver Overload: -1dBm
Max. Power Consumption: ≤1W
Extinction Ratio: >3dB
DDM/DOM: Supported
Operating Temperature: 0 to 70°C (32 to 158°F)
Core Size: 50/125µm
Modulation: NRZ
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Juniper Networks SFPP-10GE-SR 10GBASE-SR SFP+ transceiver module (multimode fiber, 850 nm, 300 m, LC, digital diagnostic monitoring)
The Juniper Networks SFPP-10GE-SR SFP+ transceiver supports up to 400 meters of OM4 multimode fiber link length (up to 300 meters over OM3 multimode fiber) via LC duplex connectors.
This transceiver complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards and ensures seamless interoperability in multi-vendor environments.
Digital diagnostic monitoring is implemented through the dual-line serial interface specified by SFF-8472.
This 10G SFP+ transceiver features low power consumption and high speed, making it ideal for data centers,
enterprise wiring closets, service provider transport applications, radio and baseband equipment, and more.
In addition to Juniper 740-031980-01 SFPP-10GE-SR , Liyuan Tech supply a wide range of other Juniper series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
