Schneider Electric Series

Schneider Electric BMXCRA31210 BMXDDI3202K BMXDDO3202K BMECRA31210

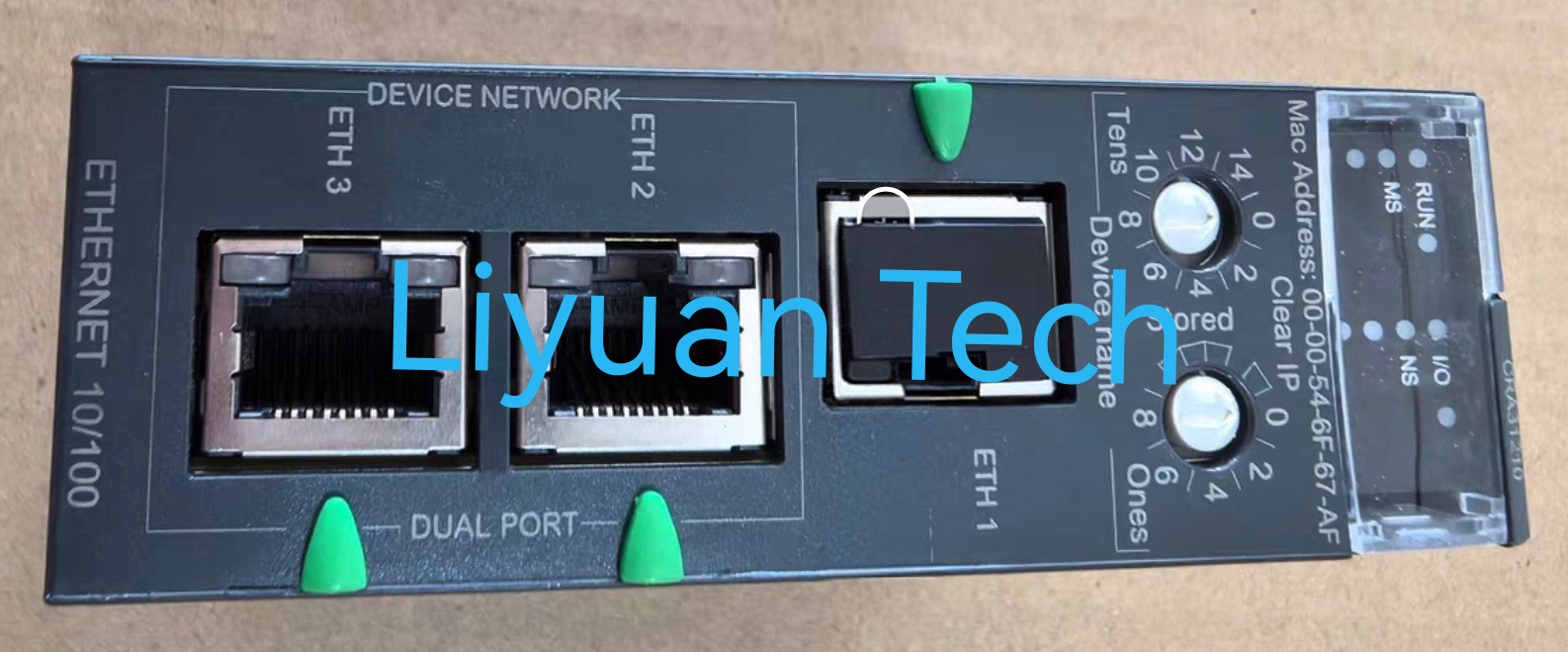

Product description: Schneider Electric BMXCRA31210 BMXDDI3202K BMXDDO3202K BMECRA31210_Remote I/O Expansion Module, 3-Port_Liyuan Tech
INQUIRY

Manufacturer: Schneider Electric
Part Number: BMXCRA31210 BMXDDI3202K BMXDDO3202K BMECRA31210
Range of Product： Modicon X80
Range Compatibility：Modicon M580
Modicon Quantum：Product or Component Type
I/O expansion module：Device Application
X80 Ethernet RIO drop adaptor：Product Specific Application
For remote I/O modules：Complementary
Bus type：Bus X across the remote backplane
Number of port：3
Integrated connection type：1 port service or distributed equipment，2 port Ethernet RIO Network (RSTP)。
Communication Network Type：IPv4 (internet protocol)
Communication Port Protocol：EtherNet/IP
description：Remote I/O Expansion Module, 3-Port, 10/100 Mbps, 10/100BASE-TX, 3-RJ45, 3.3 VDC, Ethernet/IP
The Schneider Electric BMXCRA31210 is a digital output module in the Modicon M340 programmable logic controller (PLC) series.
Here is its key product description and features:
1. Module type: Digital output module (DO)
2. Output type: Relay output
3. Output points: 16 points (16 independent output channels)
4. Contact form: Normally open (Form A / SPST-NO) - Each channel provides a set of independent, switchable normally open contacts.
5. Contact rating:
Maximum switching voltage: 250V AC / 30V DC
Maximum switching current: 2A (resistive load, per channel)
Maximum switching power:
Resistive load: 60W
Inductive load (cosφ = 0.4, L/R = 7ms): 30W
Incandescent lamp load: 100W
6. Isolation
Channel-to-channel isolation: Each output channel is **electrically isolated**.
Backplane bus isolation: There is **opto-isolation** between the output channels and the PLC's backplane bus.
7. Response time:
Onset time (from command to contact closure): ≤ 10ms
Offset time (from command to contact opening): ≤ 10ms
8. Mechanical life: ≥ 10,000,000 operations (without load)
9. Electrical life:
Resistive load (2A @ 250V AC): ≥ 100,000 operations
Resistive load (2A @ 30V DC): ≥ 100,000 operations
10. Connection method: Usually connected through a detachable screw terminal block. The specific model (such as BMXXCA) needs to be confirmed according to the ordering information.
11. Status indication: Each channel usually has an LED indicator light to indicate the output status (ON/OFF).
12. Module width: Standard width is 35 mm (occupying one standard module slot).
13. Compatibility: Designed for installation on the local rack of the Modicon M340 PLC, and needs to be used in conjunction with the corresponding BMX BPA power module and BMX BME processor module.
14. Application scenarios: The relay output module is often used for controlling:
AC contactors, solenoid valve coils
Indicators, alarms
Small motors start/stop
