Schneider Electric BMXCPS3500 BMXCPS2000

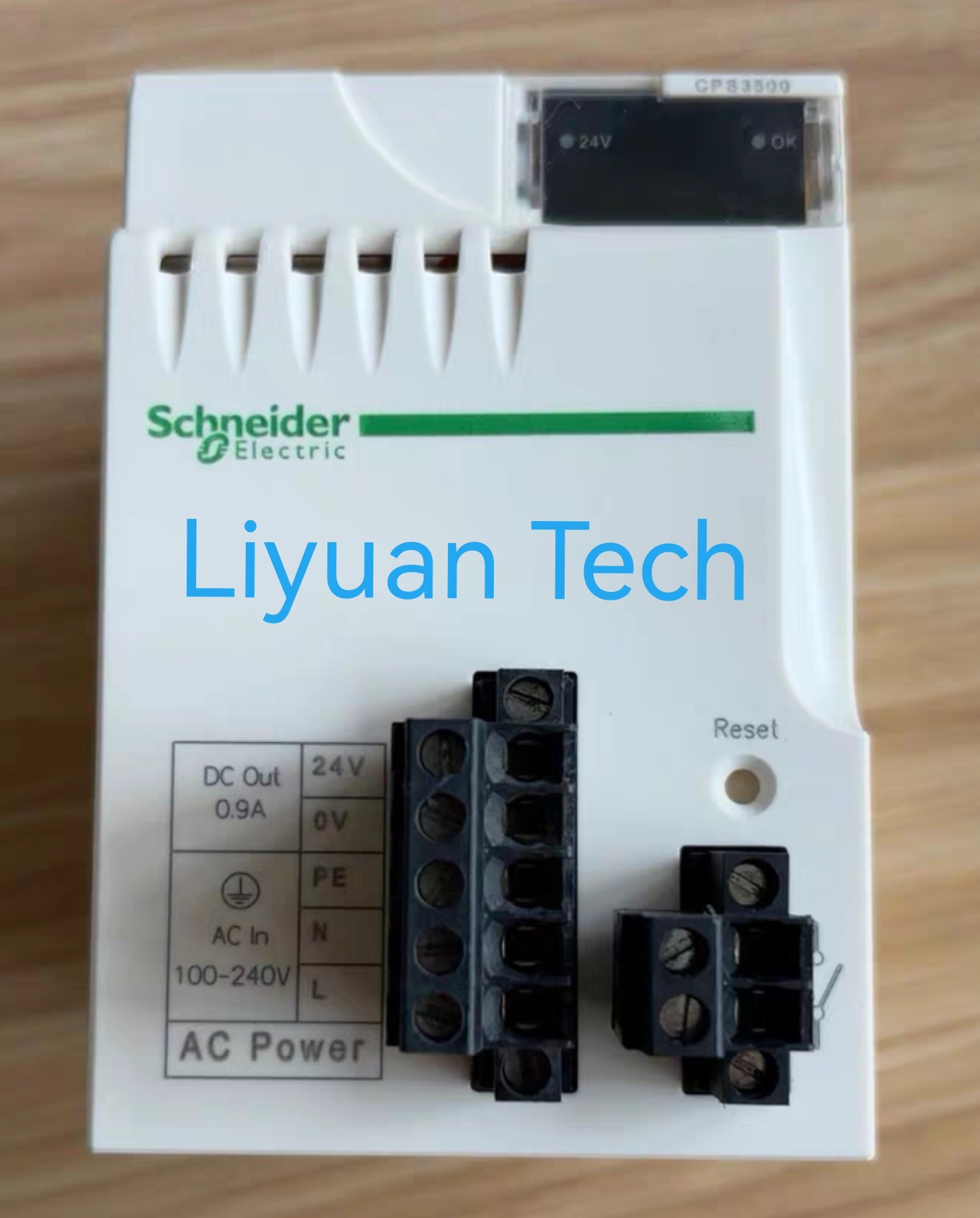

- Product description: Schneider Electric BMXCPS3500 BMXCPS2000_power supply module X80 - 100..240 V AC - 36 W_Liyuan Tech
-
Manufacturer: Schneider Electric
Part Number: BMXCPS3500 BMXCPS2000
Range of product：Modicon M340 automation platform
Product or component type：Power supply module
Product compatibility：Not compatible with BMEXBP..02
Primary voltage： 100...240 V
Supply circuit type： AC
Total useful secondary power： <= 36 W
Secondary power：15 W 3.3 V DC I/O module logic power supply，21.6 W 24 V DC sensor power supply，31.2 W 24 V DC I/O module power supply and processor
Description: Power Module X80 - Input Voltage: 100..240 volts alternating current - Output Power: 36 watts，
Schneider Electric's BMXCPS3500 is a power module specifically designed for its Modicon M340 programmable logic controller series.
Here is the product description and key features:
1. Core Function:
Power supply for PLC rack: Its main role is to provide the necessary DC working power (usually +24VDC) for other M340 modules installed on the same BMX XBP rack (backplane), such as CPU modules,
I/O modules, communication modules, etc.
Power conversion: Converts the input AC or DC power (depending on the model variant) into a stable and isolated DC power supply for the internal modules of the PLC.
2. Key Features:
Wide input voltage range: Typically designed to accept a wide range of input voltage, to adapt to different industrial power grid environments. Common input specifications include:
AC input: For example, 100-240V AC, 50/60Hz (this is a very common specification).
DC input: For example, 125-250V DC.
Note: The specific input range needs to be confirmed by referring to the official manual of this model, but a wide input range is a standard design. *
Output Voltage: **Provides a stable **+24VDC** output, which is used for the backplane and other modules.
Output Power: The model identifier 3500 usually directly represents its rated output power, that is, 35 Watts (3500 = 35 * 100). This indicates that it can provide a maximum of 35 watts of power to the modules on the backplane.
Hot Swap Support: Most M340 power modules (including BMXCPS3500) support hot swap functionality. This means that the，
power module can be safely replaced or installed without disconnecting the PLC system main power supply, significantly improving the system's availability and maintenance convenience.
Status Indicators: The module is equipped with LED indicators (usually including the `PWR` power status indicator and the `F` fault indicator) to display the power operation status (normal, fault, etc.).
Protection Functions: Built-in multiple protection mechanisms, such as:
Input overvoltage/undervoltage protection
Output overload protection
Output short circuit protection
Overheating protection
Compact Design: Adopting the standard size of Modicon M340 modules, the width is usually 1 or 2 module slots (the specific width needs to be checked in the manual,
commonly it is the width of a single slot), facilitating installation on the rack.
Connection Method: Connected to other modules on the rack through the backplane bus for power and communication. The input power is connected through the front or upper terminals of the module.
3. Typical Applications:
Provide the core power for the local rack of the Modicon M340 PLC system.
Suitable for various industrial automation applications, such as manufacturing, process control, machine control, water treatment, building automation, etc.
In addition to Schneider Electric BMXCPS3500 BMXCPS2000，Liyuan Tech supply a wide range of other Schneider Electric Series .If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
