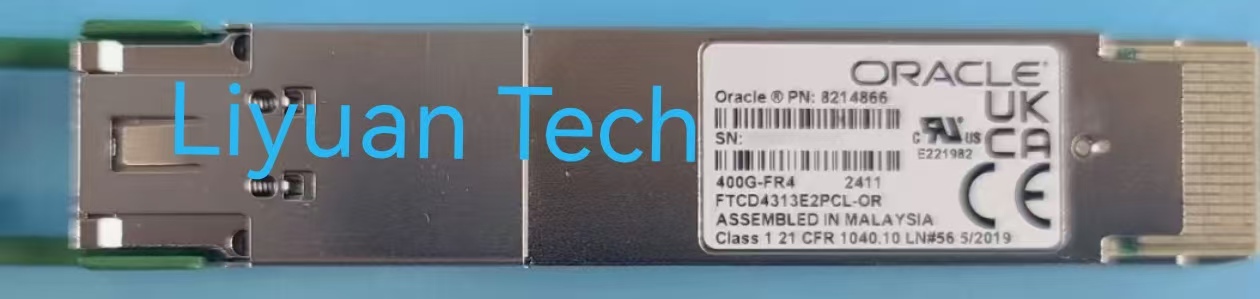

ORACLE 8214866

Product description: ORACLE 8214866 _ QSFP-DD 8 x 50G PAM4 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver_liyuan tech
INQUIRY

Brand: ORACLE
Part Number: 8214866
Form Factor: QSFP-DD
Max Data Rate: 400Gbps
Wavelength: 1271nm,1291nm,1311nm,1331nm
Max. Cable Distance: 2km
Connector: Duplex LC/UPC
Media: SMF
Transmitter Type: CWDM EML
Receiver Type: PIN
TX Power: -3.2~4.4dBm
Minimum Receiver Power: -7.2dBm
Power Budget: 4dB
Receiver Overload: 4.4dBm
Max. Power Consumption: 9W
Extinction Ratio: 3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Modulation (Electrical): 8x50G-PAM4
Modulation (Optical): 4x100G-PAM4
DSP: TX and RX
Inbuilt FEC: No
Core Size: G.652/9um
Packaging Technology: COB
Protocols: QSFP-DD MSA, CMIS.5.0, IEEE 802.3bs
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
ORACLE 8214866 400GBASE-FR4 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The ORACLE 8214866 400GBASE-FR4 module, Duplex LC connector, up to 2km over parallel single-mode fibre. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths.
In addition to ORACLE 8214866 , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
