Optical transceiver

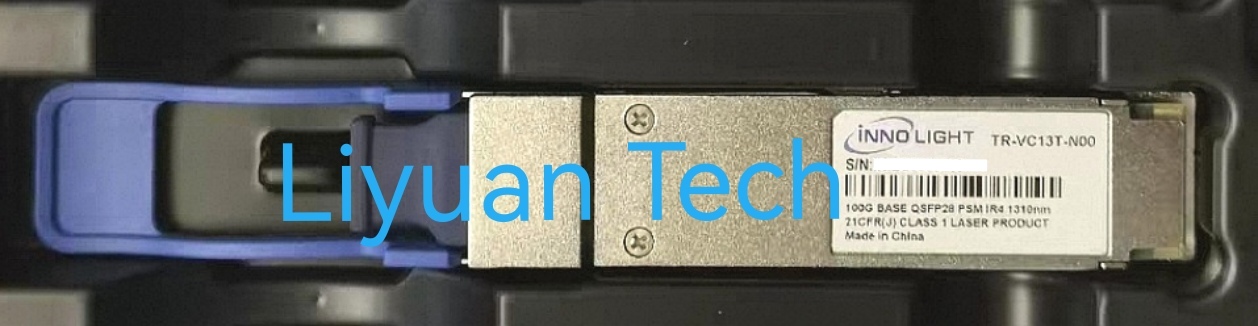

Innolight TR-VC13T-N00
- Product description: Innolight TR-VC13T-N00 _QSFP28 100G LR4 PSM4 1310nm 2km_liyuan tech
-
Brand: Innolight
Part Number: TR-VC13T-N00
Data Rate: 100Gb/s
Form Factor: QSFP28
Data Rate: 100Gb/s
Central Wavelength: 1310nm
Transmission Distance: 2km
Fiber Type: Single Mode
Connector: MPO
Single Power Supply: +3.3v
Transmit Power: -5.5dB to 2dB
Rx Sensitivity: -10.2dB to 2dB
Extinction Ratio: 3.5dB
Power Consumption: 3.5W
Application: 100G Ethernet Link
Temperature: 0°C to 70°C
Weight: 0.06kg
Rx: Password
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Key Points: Parallel Single Mode Transceiver, QSFP28 IR4 Single Mode Transceiver, IR4 100G QSFP28 Module
describe：Innolight 100Gb/s QSFP28 IR4 Parallel Single Mode Optical Transceiver TR-VC13T-N00
In addition to Innolight TR-VC13T-N00 , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
