Mellanox series

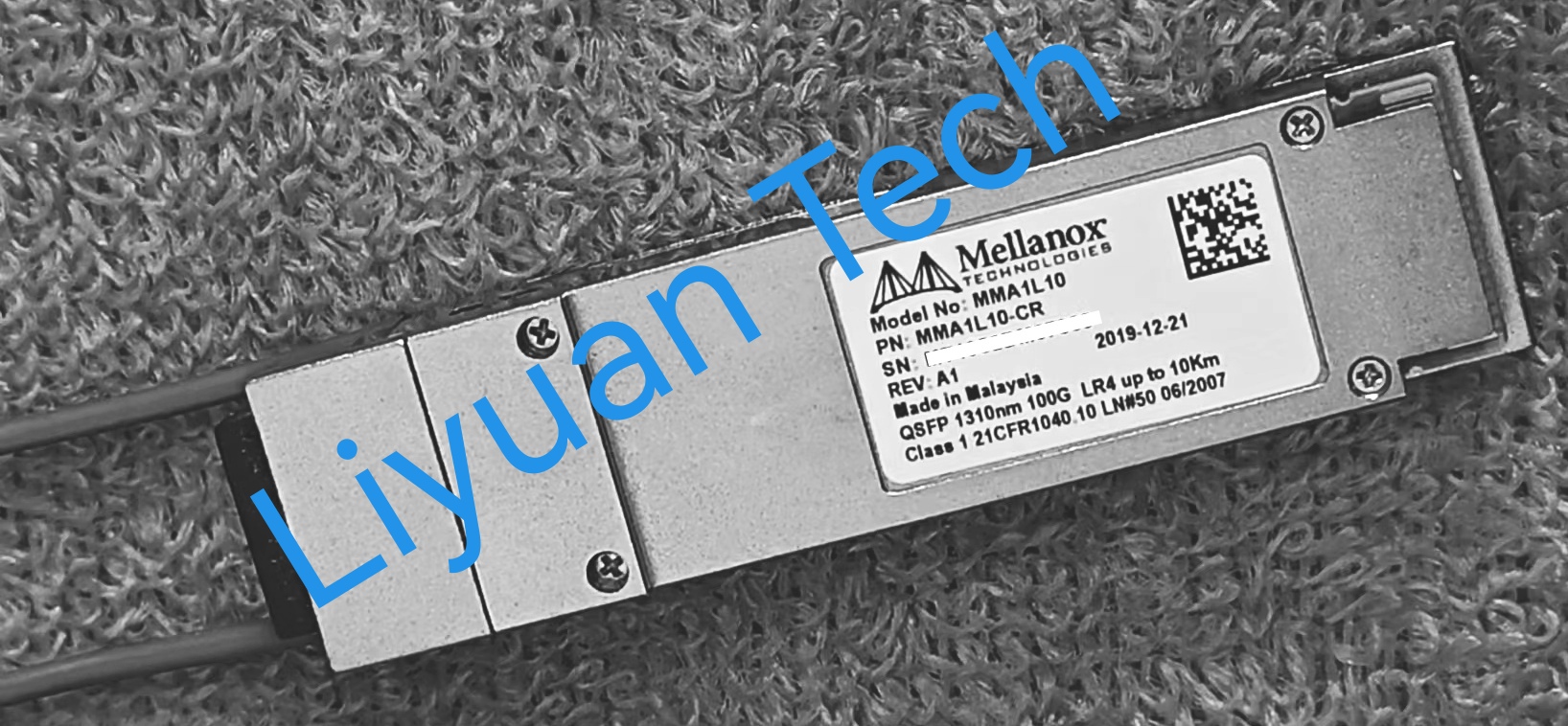

Mellanox MMA1L10-CR
- Product description: Mellanox MMA1L10-CR _100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Ethernet Optical Transceiver Module_liyuan tech
-
Brand: Mellanox
Part Number: MMA1L10-CR
Form Factor: QSFP28
Max. Data Rate: 100Gbps
Wavelength: 1310nm
Max. Cable Distance: 10km
Connector: Duplex LC/UPC
Media: SMF
Transmitter Type: 4 x LAN WDM EML
Receiver Type: PIN
TX Power: -4.3~4.5dBm
Minimum Receiver Power: -10.6dBm
Power Budget: 6.3dB
Receiver Overload: 4.5dBm
Max. Power Consumption: 3.5W
Extinction Ratio: >4dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Modulation (Electrical): 4x25G NRZ
Modulation (Optical): 4x25G NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Packaging Technology: BOX Packaging
MTBF: 8,340,283 Hours
Bit Error Ratio (BER): 1E-12
Protocols: QSFP28 MSA, SFF-8636, IEEE 802.3‑2012, PSM4 MSA, CAUI-4
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Mellanox MMA1L10-CR 100GBASE-LR4 QSFP28 Ethernet optical transceiver (SMF, 1310nm, 10km, LC, DOM)
The Mellanox MMA1L10-CR QSFP28 module provides 100GBase-LR4 throughput over standard single-mode fiber (SMF) with dual LC connectors, up to 10km.
This transceiver complies with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostic functions can also be achieved through the I2C interface,
in accordance with QSFP28 MSA specifications, to enable real-time access to parameters. With these features, this easy-to-install,
hot-swappable transceiver is suitable for a variety of applications, such as 100G telecommunication connections, data centers,
high-performance computing networks, enterprise core and distribution layers, campus networks, etc.
In addition to Mellanox MMA1L10-CR , Liyuan Tech supply a wide range of other Mellanox series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
