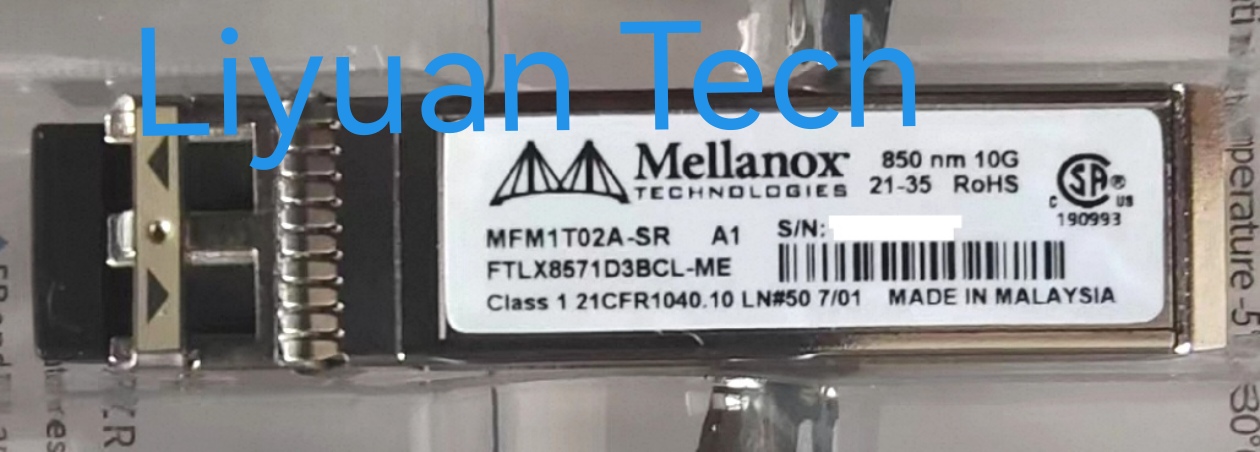

Mellanox MFM1T02A-SR
- Product description: Mellanox MFM1T02A-SR _10GBASE-SR SFP+ 850nm 300m DOM Duplex LC/UPC MMF Ethernet Optical Transceiver Module_liyuan tech
-
Brand: Mellanox
Part Number: MFM1T02A-SR
Form Factor: SFP+
Max. Data Rate: 10Gbps
Wavelength: 850nm
Max. Transmission Distance: 300m
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.3~-1dBm
Receiver Sensitivity: < -11.1dBm
Power Budget: 3.8dB
Receiver Overload: -1dBm
Max. Power Consumption: ≤1W
Extinction Ratio: >3dB
DDM/DOM: Supported
Operating Temperature: 0 to 70°C (32 to 158°F)
Core Size: 50/125µm
Modulation: NRZ
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Mellanox MFM1T02A-SR 10GBASE-SR SFP+ Ethernet Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Mellanox MFM1T02A-SR SFP+ Ethernet transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector.
This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed,
this 10G SFP+ transceiver is ideal for data centres, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
In addition to Mellanox MFM1T02A-SR , Liyuan Tech supply a wide range of other Mellanox series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
