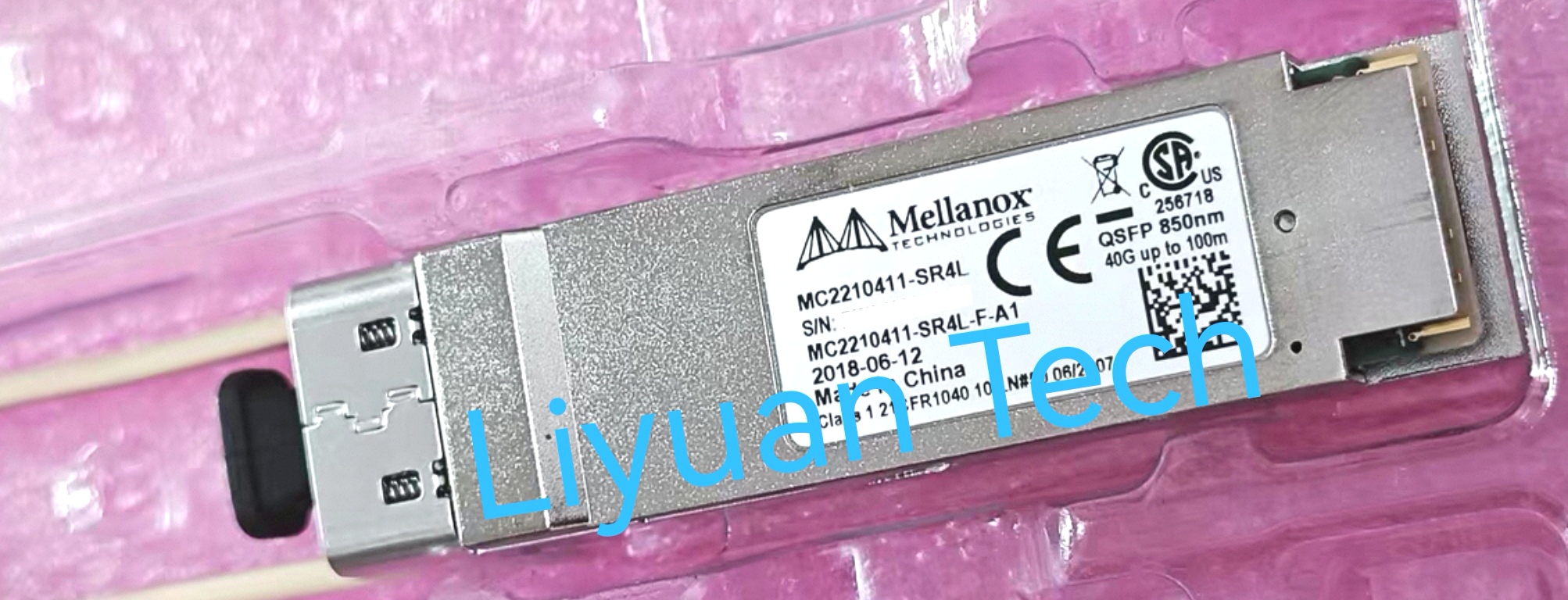

Mellanox MC2210411-SR4L

Product description: Mellanox MC2210411-SR4L _40GBASE-SR4 Lite QSFP+ 850nm 150m DOM MPO-12/UPC MMF Optical Transceiver Module_liyuan tech
INQUIRY

Brand: Mellanox
Part Number: MC2210411-SR4L
Form Factor: QSFP+
Max. Data Rate: 40Gbps
Wavelength: 850nm
Max. Transmission Distance: 150m
Connector: MTP/MPO-12 Male
Cable Type: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.6~2.4dBm
Receiver Sensitivity: <-5.4dBm
Digital Optical Monitoring: Yes
Receiver Overload: 2.4dBm
Max. Power Consumption: ≤1.5W
Core Size: 50um
Extinction Ratio: >3dB
Modulation: NRZ
Host FEC: Supported
Modal Bandwidth: 2000 (OM3) MHz*km, 4700 (OM4) MHz*km
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3 40GBASE-SR4, SFF-8436
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: Thailand
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Mellanox MC2210411-SR4L Compatible 40GBASE-SR4 Lite QSFP+ Ethernet Optical Transceiver Module (MMF, 850nm, 30m, MTP/MPO, DOM)
The Mellanox MC2210411-SR4L QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3).
This transceiver is compliant with IEEE 802.3 40GBASE-SR4 standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces.
Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parametres.
With its easy installation and hot-swappable design, this transceiver is ideal for various applications, including campus, data centre, cloud deployments,
high-performance computing environments, and interconnections between switches, routers, servers, and transport equipment.
Because the QSFP-SR4-40G does not support 4x10G breakout connectivity, see QSFP-4×10G-SR for such applications.
In addition to Mellanox MC2210411-SR4L , Liyuan Tech supply a wide range of other Mellanox series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
