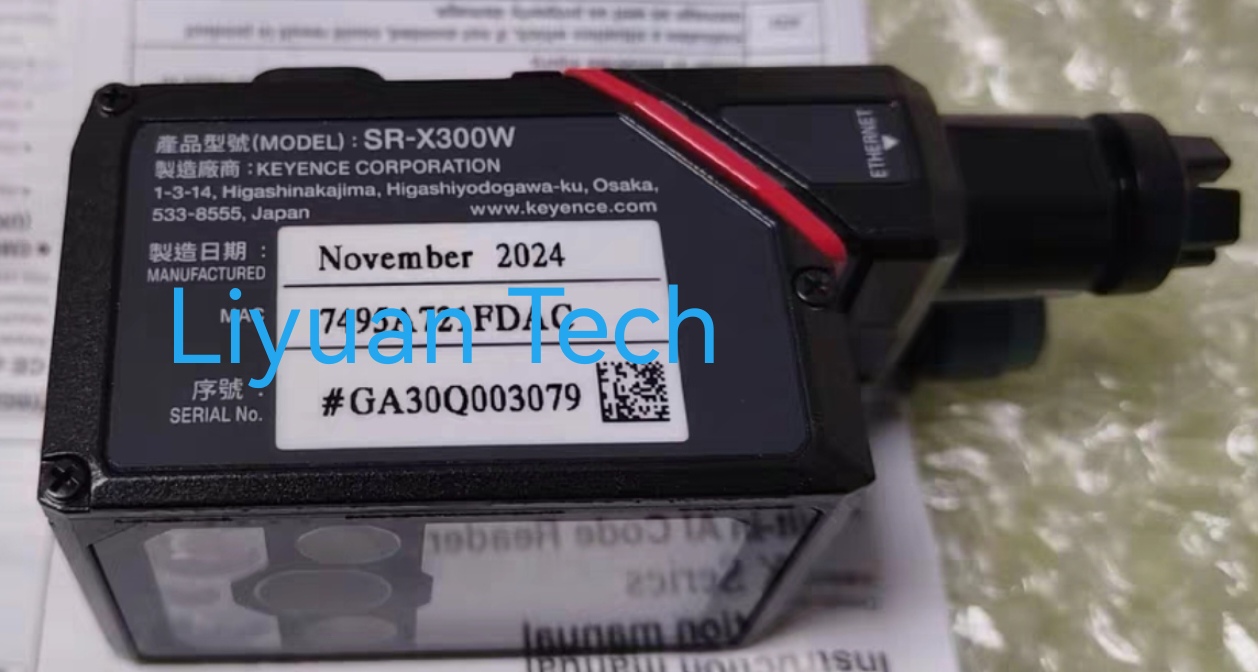

Keyence SR-X300W SR-X300
- Product description: Keyence SR-X300W SR-X300_SR-X300W AI-Powered Code Reader _Liyuan tech
-
Manufacturer : Keyence
Product No. : SR-X300W SR-X300
Type : Wide-field type (2.3 megapixels)
Sensor : CMOS image sensor
Number of pixels : 1920 × 1200
Focus : Auto
Illumination light source : High-intensity red/white LED
Pointer light source : High-intensity green LED
Minimum resolution : 2D codes : 0.060 mm | Barcodes : 0.082 mm
Reading distance : 50 to 1000 mm
Reading field of view : 267 × 166 mm
I/O specifications :
Control input : Number of inputs : 2 | Input type : Photo MOS relay output | Maximum rating : 30 VDC | Minimum ON voltage : 15 VDC | Maximum OFF current : 0.2 mA
Control output : Number of outputs : 3 | Output type : Bidirectional voltage input | Maximum rating : 30 VDC | Maximum load current : 50 mA or less for 1 output,
or 100 mA or less in total for 3 outputs | Leakage current when OFF : 0.1 mA or less | Residual voltage when ON : 1 V or less
USB : Communication standard : USB 2.0 High Speed compliant
Ratings :
Power voltage : 24 VDC +25%/-20%
Current consumption : Approx. 750 mA
Environmental resistance :
Enclosure rating : IP65/IP67 (IEC60529)
Ambient temperature : 0 to +45°C
Storage temperature : -10 to +50°C
Relative humidity/Storage relative humidity : 35 to 85% RH (No condensation)
Weight : Approx. 200 g
Shipping Weight : 1.5 kg
Keyence SR-X300W is a high-performance wireless industrial scanner (assumed to be a barcode/QR code reading device).
Designed specifically for complex industrial environments, it combines high-precision reading capabilities with wireless convenience and is suitable for a variety of automation scenarios.
The following is a detailed introduction and application scenarios:
Product Introduction
Core functions
High-speed wireless scanning: Supports Wi-Fi or Bluetooth transmission to upload data to the management system in real time, suitable for mobile or remote operation.
High-precision recognition: Capable of reading barcodes/QR codes (such as DPM codes) on tiny, blurry, and highly reflective surfaces, and adaptable to harsh lighting conditions.
Durable design: IP67 protection rating, impact-resistant, dust-proof and water-proof, suitable for factories, warehouses and other environments.
Long-range battery: Supports continuous operation for several hours, and the fast charging function reduces downtime.
2. Technical highlights
Wide field of view and flexible focal length: Autofocus or adjustable focal length, suitable for different distances (such as close-range PCB inspection or long-distance logistics pallet scanning).
Multi-protocol compatibility: Supports industrial protocols such as Profinet and EtherNet/IP, seamlessly integrating with PLC or MES systems.
Intelligent analysis software: Built-in data analysis tools (such as the Keyence dedicated platform), capable of calculating read rates and generating reports.
Typical usage scenarios
Intelligent manufacturing and assembly lines
Automotive industry: Scan the QR code of engine parts, track production batches, and ensure assembly accuracy.
Electronic manufacturing: Reading the micro-barcodes on PCB boards to prevent material mixing and improve the yield rate.
2. Logistics and Warehousing
Intelligent sorting: Wirelessly scan the barcode of packages, update the inventory system in real time, and improve sorting efficiency.
Unmanned warehousing: In conjunction with AGV carts, it dynamically reads the shelf labels to achieve automated storage and retrieval.
3. Quality Control and Traceability
Food packaging: Check the integrity of the packaging spray code to ensure that the production date and batch information are traceable.
Pharmaceutical industry: Scan the serial numbers of drugs to meet GMP compliance requirements.
4. Special environment applications
Heavy industry workshop: Scan the DPM code of metal parts in oily and high-temperature environments to replace manual recording.
Outdoor logistics: Through wireless transmission, large material labels can be remotely managed at ports and construction sites
In addition to Keyence SR-X300W SR-X300 ，Liyuan Tech supply a wide range of other Keyence Series .If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
