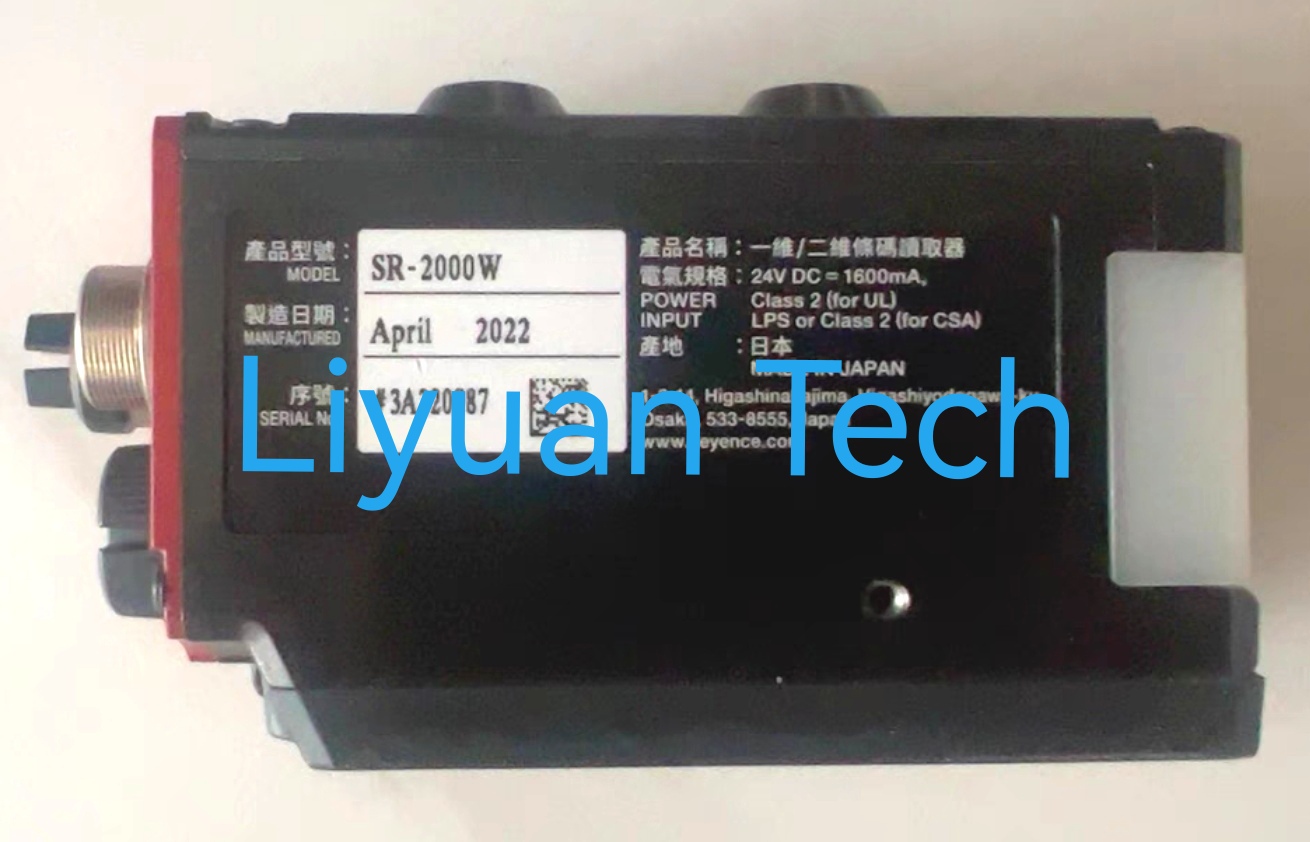

Keyence SR-2000W
- Product description: Keyence SR-2000W_SR-2000W Automatic Focus Code Reader_Liyuan tech
-
Manufacturer : Keyence
Product No. : SR-2000W
Product Type : 1D/2D Code reader
Control Input :
Number of Inputs : 2
Input Type : Bidirectional voltage input
Maximum Rating : 26.4 VDC
Minimum ON voltage : 15 VDC
Maximum OFF Current : 0.2 mA or less
Control Output :
Number of Outputs : 3
Output Type : Photo MOS relay output
Maximum Rating : 30 VDC
Maximum Load Current : 1 output:50 mA or less, total 3 output: 100 mA or less
Power Voltage : 24 VDC ± 10%
Current Consumption : Approx.1,600 mA
Shipping Weight : 2 Kg
The Keyence SR-2000W is a high-precision industrial measurement device, which is usually used for non-contact 3D contour scanning and surface shape detection. The following is its detailed introduction and application:
Product Introduction
Model: SR-2000W belongs to the laser profile scanner /3D profile measuring instrument series of Keyence.
Technical principle: By scanning the surface of an object with a laser line and combining it with a high-speed camera to capture the reflected light, high-resolution 3D contour data is generated in real time.
Core features:
High-speed scanning: Sampling frequencies up to several thousand Hertz (kHz), suitable for high-speed production lines.
High precision: Micron-level (μm) measurement accuracy, suitable for precision manufacturing.
Wide measurement range: It can cover a large area (such as a 2000mm range, depending on the model).
Wireless function (W suffix) : Supports wireless data transmission or remote control, facilitating flexible deployment.
Anti-interference performance: Adaptable to complex industrial environments (such as vibration, dust, and temperature differences).
Main uses
1. Industrial automation inspection
Dimension measurement: Real-time detection of key dimensions such as the length, height and width of components.
Shape matching: Verify whether the product contour conforms to the CAD design (such as gear tooth profile, curved surface curvature).
Surface defect detection: Identify scratches, depressions, burrs and other blemishes.
2. Quality Control (QA/QC) :
Online inspection: Integrated into the production line, 100% full inspection, reducing the outflow of defective products.
Data recording: Save measurement results for traceability and analysis (such as SPC statistical process control).
3. Industry Applications:
Automobile manufacturing: Inspection of engine components, body weld points, and the installation accuracy of sealing strips.
Electronics industry: Measuring the flatness of PCB boards and the height of component mounting.
Metal processing: Monitor the dimensional consistency of stamping parts and cutting parts.
Plastic/rubber: Detect the deformation or shrinkage rate of injection molded parts.
Food packaging: Check the sealing of the packaging and the integrity of the bottle cap assembly.
4. Special Scenarios:
Mobile device detection: Wireless function supports handheld or robot mounting, suitable for complex workstations.
Wide-range scanning: Suitable for continuous measurement of long and strip-shaped workpieces (such as guide rails and pipes).
Advantages and differences from competitors
Usability: Keyence devices are usually equipped with intuitive software (such as "LM Navigator"), supporting rapid programming and data analysis.
Integration: It can be seamlessly integrated with PLC, robots or MES systems to achieve automated closed-loop control.
Environmental adaptability: IP67 protection grade (for some models), resistant to oil and dust, suitable for harsh working conditions.
In addition to Keyence SR-2000W ，Liyuan Tech supply a wide range of other Keyence Series .If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
