Finisar Series

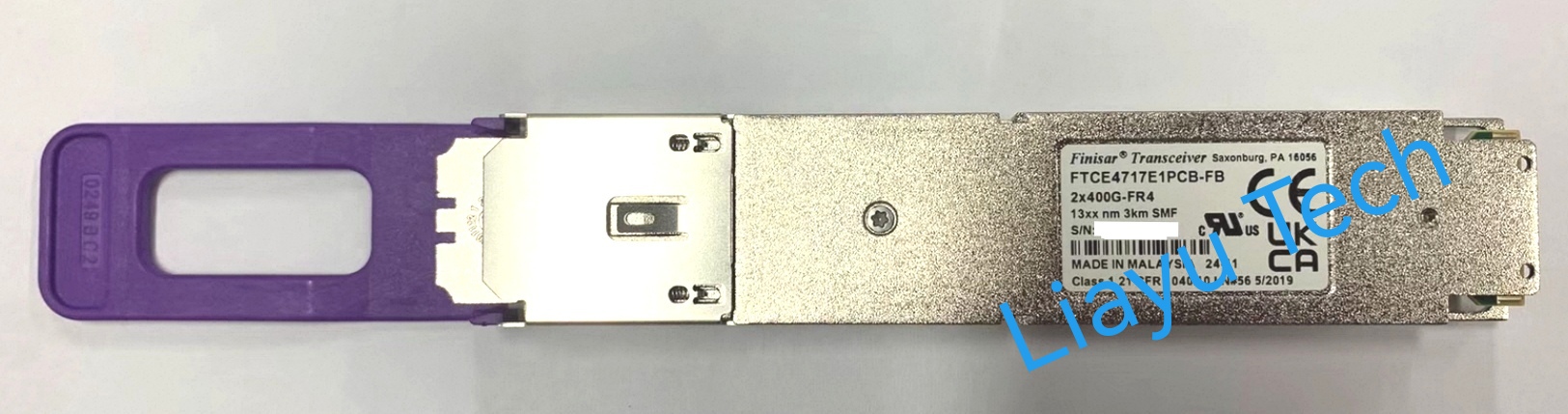

Finisar FTCE4717E2PCB
- Product description: Finisar FTCE4717E2PCB _800G (2x400G-FR4) OSFP Finisar Transceiver_Liyuan tech
-
Manufacturer: FINISAR
Part number: FTCE4717E2PCB
Product Category: Optical Transceiver
Form Type: OSFP
Speed Description: 800GB
Reach: 2km
Wavelength: 1310nm
Media: SMF
Transceiver Type: FR4
Hot-pluggable OSFP Type 2 form
factor with closed top heatsink
Supports 2x425Gb/s aggregate bit
Supports 2x400 FR4 and
compatible with 2x200 FR4
Belly2Belly SMF LC Duplex UPC
Case temperature range 0-70C
Single 3.3V power supply, <=15W
Aligned with IEEE 802.3cu
8x100G PAM4 CWDM transmitter
8x100G PAM4 retimed 106.25Gb/s
PAM4 electrical interface aligned to
IEEE 802.3ck
Finisar FTCE4717E2PCB 2x400G-FR4 OSFP transceiver modules are designed for use in
Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the
OSFP MSA and portions of IEEE P802.3cu6
and P802.3ck7 Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA.
The optical transceiver is RoHS compliant as described in Application Note AN-20383.
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
describe: 800G (2x400G-FR4) OSFP Finisar Transceiver。
In addition to Finisar FTCE4717E2PCB , Liyuan Tech supply a wide range of other FINISAR Series . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
