Finisar Series

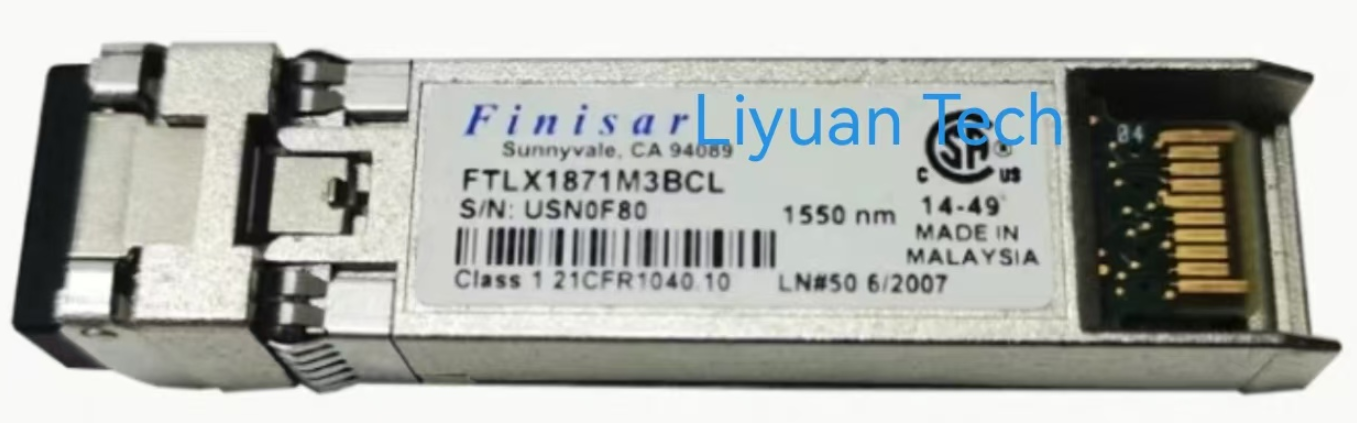

FINISAR FTLX1871D3BCL FTLX1871M3BCL

Product description: FINISAR FTLX1871D3BCL FTLX1871M3BCL_10Gb/s 80km Single Mode SFP+ Transceiver_liyuan tech
INQUIRY

Manufacturer: FINISAR
Part number: FTLX1871D3BCL FTLX1871M3BCL
Form Type: SFP+
Speed Description: 10-Gigabit
Wavelength: 1550nm
Transceiver Type: ZR
Media: SMF
Reach: 80km
Connector: Duplex LC
DOM: Non-DOM
Detailed product description of Finisar FTLX1871D3BCL and FTLX1871M3BCL fiber transceivers:
Core specifications:
1. Model: FTLX1871D3BCL
2. Package type: SFP+ (small form-factor pluggable enhanced type)
3. Transmission rate: 10 Gbps (supports 9.95 Gb/s to 10.7 Gb/s)
4. Transmission distance: 80 kilometers (km) ** (single-mode fiber)
5. Wavelength: 1550 nm (typical emission wavelength)
6. Interface: Dual LC fiber interface
7. Fiber type: Single-mode fiber (SMF) (G.652 standard) Key features
Meets standards: IEEE 802.3ae 10GBASE-LR/LW**(long-distance), SFF-8472 (Digital Diagnostic Monitoring, DDM), SFF-8431 (SFP+ MSA specification)
DDM function: Supports real-time monitoring of optical power, temperature, voltage, bias current (Tx/Rx), facilitating fault troubleshooting.
-Low power consumption: Typical power consumption ≤ 1.5W (energy-saving design)
Operating temperature:
Commercial grade (COM): 0°C to +70°C
Industrial grade (IND): -40°C to +85°C (confirmation of specific suffix required)
Laser safety: Complies with Class 1 laser safety standard**(IEC 60825-1)
Technical details
Parameters: Transmit end (Tx): Receive end (Rx)
Wavelength: 1550 nm ±5 nm, 1260 - 1620 nm
Modulation method: Direct modulation (DFB laser)
Sensitivity: ≤ -23 dBm (BER ≤ 10⁻¹²)
Optical power: +1 to +4 dBm
Overload point: ≥ -1 dBm
Application scenarios: Long-distance backbone network**: Metropolitan Area Network (MAN), telecommunications backhaul, data center interconnection (DCI), uplink of 10G Ethernet switches/routers, storage network (SAN/NAS)
Compatibility: Host compatibility: Supports all devices that comply with SFP+ MSA standard (such as Cisco, Juniper, HPE, Arista, etc.) Fiber compatibility: G.652 single-mode fiber (OS1/OS2)
Certification and reliability: Certification: Passed Telcordia GR-468-CORE (reliability test), MTBF: > 5 million hours (high reliability design)
In addition to FINISAR FTLX1871D3BCL FTLX1871M3BCL , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
