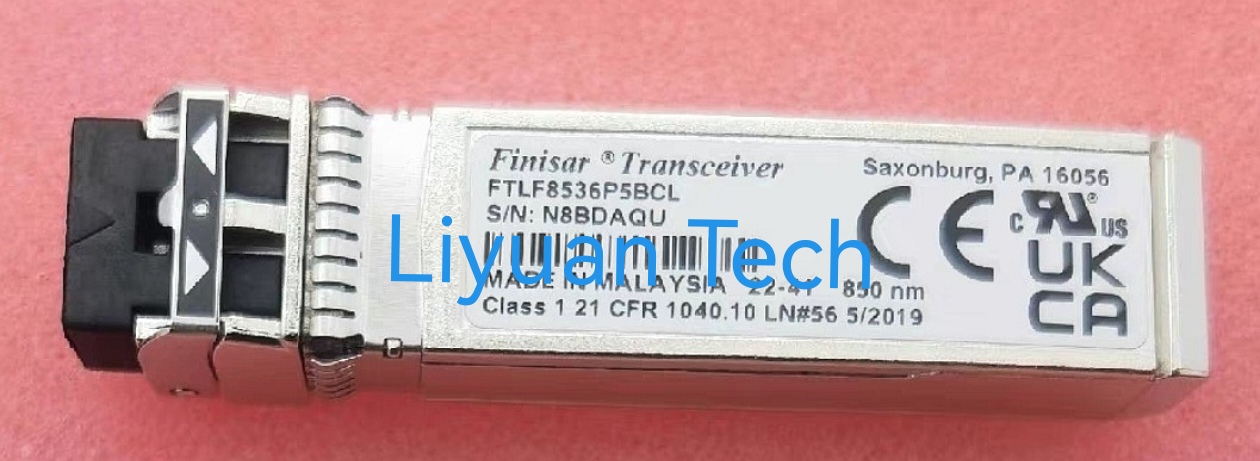

FINISAR FTLF8536P5BCL
- Product description: FINISAR FTLF8536P5BCL_25GBase-SR SFP28 Transceiver (MMF, 850nm, 100m, LC)_Liyuan tech
-
Manufacturer: FINISAR
Part number: FTLF8536P5BCL
Form Type: SFP28
Speed Description: 25-Gigabit
Reach: 100m
Wavelength: 850nm
Transceiver Type: SR
Media: MMF
DDM: DDM
Connector: LC
DOM: DOM
Availability: Used
Lead time-7days
Trading terms: TT
Warranty period: 180days
Country of Origin: Malaysia
FINISAR FTLF8536P5BCL is a high-performance SFP28 optical transceiver module, specifically designed for 25Gbps Ethernet, 32Gbps Fibre Channel (FC32G), and high-speed applications such as InfiniBand SDR/DDR/QDR.
1. Form Factor: SFP28 (compatible with SFP+ in terms of physical design, but supports 25Gbps/28Gbps electrical interface).
2. Data Rate: Supports 25.78125 Gbps (25G Ethernet) and 28.05 Gbps (32G Fibre Channel, FC32G). Compatible with InfiniBand SDR (2.5Gbps), DDR (5Gbps), QDR (10Gbps), and FDR (14.0625Gbps).
3. Wavelength: 850nm (VCSEL laser).
4. Fiber Type: Multimode Fiber (MMF).
5. Reach: Up to 100 meters (using OM4 multimode fiber), typically also compatible with OM3 fiber (OM3 standard distance is 70 meters at 25G, but OM4 can reach 100 meters).
6. Interface: Duplex LC optical connector.
7. Modulation: NRZ (Non-Return-to-Zero code).
8. Key Protocols/Applications:
25 Gigabit Ethernet (25GbE) - Compliant with IEEE 802.3by standard.
32 Gigabit Fibre Channel (32GFC) - Compliant with FC-PI-6 standard.
InfiniBand Single Data Rate (SDR), Double Data Rate (DDR), Quad Data Rate (QDR), Fourteen Data Rate (FDR).
Enterprise networks, data center interconnection, high-performance computing (HPC), storage area networks (SAN).
9. Transmitter: Based on 850nm VCSEL (Vertical Cavity Surface-Emitting Laser) technology.
10. Receiver: PIN photodiode.
11. Digital Diagnostic Monitoring (DDM/DOM): Supported, compliant with SFF-8472 Rev 12.0 standard. Can be monitored via I²C interface:
Transmitted optical power (Tx Power)
Received optical power (Rx Power)
Module temperature (Temperature)
Laser bias current (Laser Bias Current)
Supply voltage (Supply Voltage)
Alarms and warning thresholds (Alarms/Warnings)
12. Power Consumption: Typical value ≤ 0.8W (very energy-efficient). 13. Operating Case Temperature: 0°C to +70°C (commercial temperature range).
14. Supply Voltage: +3.3V.
15. Compliance: SFP28 MSA (Multi-Source Agreement), SFF-8431 (SFP+), SFF-8472 Rev 12.0 (DDM/DOM), IEEE 802.3by (25GBASE-SR), FC-PI-6 (32GFC-SW4-100), RoHS (generally compliant).
16. Key Advantages:
High Density: SFP28 is small in size and can achieve high port density on switches.
Low Power Consumption: Optimized design results in significantly lower power consumption compared to earlier 40G solutions (such as QSFP+ SR4), making it a key factor for energy conservation in data centers.
Backward Compatibility: SFP28 ports are typically compatible with SFP+ modules (running at reduced speed).
Cost-effectiveness: For applications requiring 25Gbps to servers or short-distance interconnection, SFP28 SR is usually more cost-effective than using the QSFP28 split-line solution.
Mature and Reliable: Based on Finisar (now Coherent Corp.)'s technological accumulation in VCSEL and optical modules.
In addition to FINISAR FTLF8536P5BCL , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
