Finisar Series

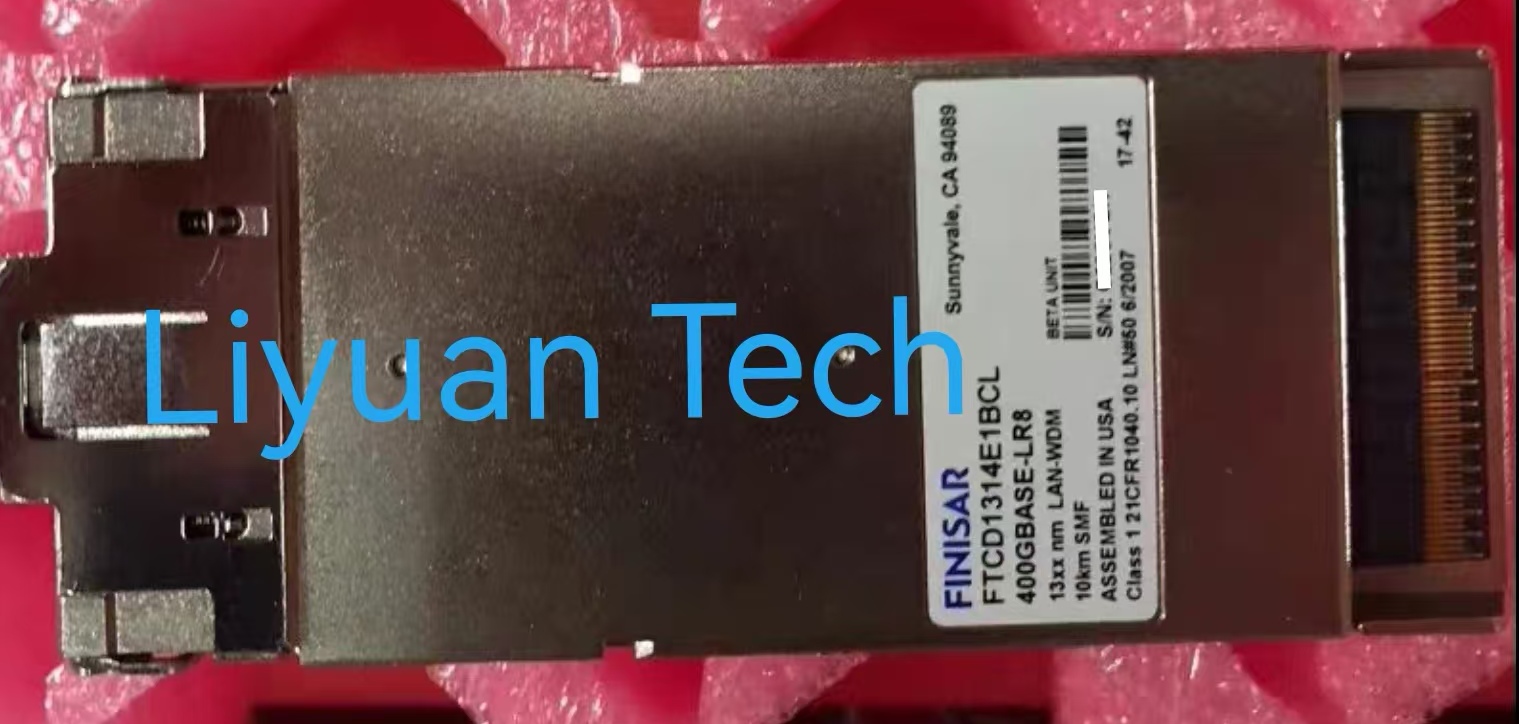

FINISAR FTCD1314E1BCL
- Product description: FINISAR FTCD1314E1BCL_10km Duplex SMF 400G CFP8 Optical Transceiver_Liyuan tech
-
Manufacturer: FINISAR
Part number: FTCD1314E1BCL
Form Factor: CFP8
Protocol: 400G Ethernet Compliant
Distance: 10 km
Wavelength: 1310nm Band
Connector: LC
Data Rate (max): 425 Gb/s
Diagnostics: Digital
Receiver: PIN
Transmitter: 8x LWDM DFB Laser
Voltage Supply: 3.3
Hot-pluggable CFP8 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation < 16W
RoHS-6 compliant
Commercial case temperature range
of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on
Single Mode Fiber (SMF)
8x50G PAM4 DFB-based
LAN-WDM transmitter
16x25G electrical interface
Duplex LC receptacles
MDIO management interface
Finisar’s FTCD1314E1BCL 400G CFP8 transceiver modules are designed for use in 400
Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP
MSA1, IEEE P802.3bs 400GBASE-LR82 and 400GAUI-162. Digital diagnostics functions
are available via the MDIO interface, as specified by the CFP MSA and Finisar Application
Note AN-20xx4. The transceiver is RoHS compliant per Directive 2011/65/EU3.
In addition to FINISAR FTCD1314E1BCL , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
