Optical transceiver

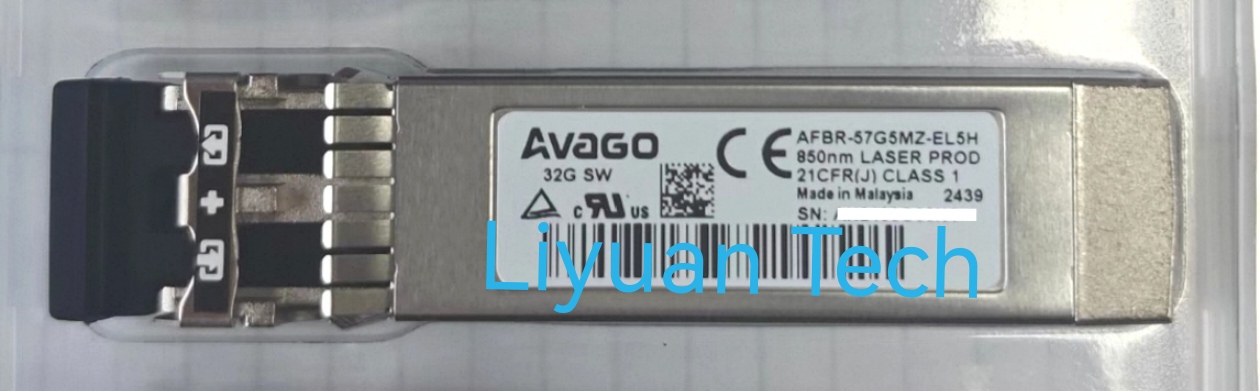

Avago AFBR-57G5MZ-EL5H
- Product description: Avago AFBR-57G5MZ-EL5H _32G 850NM 300M SW TRANRECIVER FOR 32GB FIBRE CARD_liyuan tech
-
Brand: Avago
Part Number: AFBR-57G5MZ-EL5H
Form Type: SFP+
Speed Description: 32GB
Reach: 300m
Wavelength: 850nm
Media: SMF
Connector: LC
DOM: DOM
DDM:DDM
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Description
The Broadcom AFBR-57G5MZ optical transceiver
supports high-speed serial links over multimode optical fiber
at signaling rates up to 28.05 Gb/s (the serial line rate of
32GFC). The product is compliant with Small Form
Pluggable industry agreements SFP and SFP28 for
mechanical and low-speed electrical specifications.
High-speed electrical and optical specifications are
compliant with ANSI Fibre Channel FC-PI-6.
The AFBR-57G5MZ is a multirate 850-nm transceiver that
ensures compliance with FC-PI-6 32GFC, 16GFC, and
8GFC specifications. Per the requirements of 32GFC,
internal clock and data recovery (CDR) circuits are present
on both electrical input and electrical output of this
transceiver. These CDRs lock at 28.05 Gb/s and
14.025 Gb/s (32GFC and 16GFC) but must be bypassed for
operation at 8.5 Gb/s (8GFC), accomplished by using two
Rate Select inputs to configure transmit and receive sides.
The transmitter and receiver can operate at different data
rates, as is often seen during Fibre Channel speed
negotiation.
Digital diagnostic monitoring information (DMI) is present in
the AFBR-57G5MZ per the requirements of SFF-8472,
providing real-time monitoring information of transceiver
laser, receiver, and environment conditions over an
SFF-8419 two-wire serial interface.
