Optical transceiver

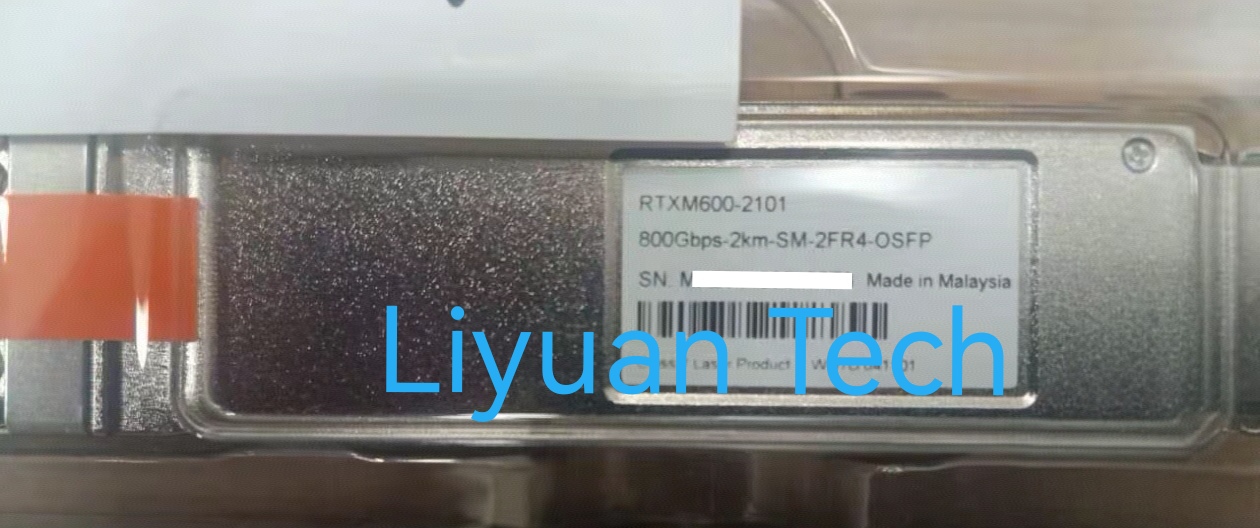

Accelink RTXM600-2010

Product description: Accelink RTXM600-2010 _OSFP 800G 1310NM 2KM 2XFR4_liyuan tech
INQUIRY

Brand: Accelink
Part Number: RTXM600-2010
Form Type: OSFP
Data Rate: 800Gb/s
Wavelength: 1310nm
Distance: 2KM
Case Temperature: 0~70℃
Voltage Supply: 3.3V
Transmitter: EML
Receiver: PIN
Wavelength: 1310nm
Power consumption（Max）：16W
Hot-pluggable OSFP form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <16W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
Aligned with IEEE 802.3bs
8x100G PAM4 EML-based 1310nm transmitter
8x100G PAM4 retimed 800GAUI-8 electrical interface
MPO-16 receptacles
I2C management interface
RoHS compliant
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
RTXM600-2010 800G OSFP DR8 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the OSFP MSA, and IEEE 802.3bs.The optical transceiver is RoHS compliant.
In addition to Accelink RTXM600-2010 , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
