HPE Aruba Series

HPE J4859C

产品描述：HPE J4859C _1000BASE-LX SFP 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module_liyuan tech
在线订购

Brand: HPE
Part Number: J4859C
Form Factor: SFP
Max. Data Rate: 1.25Gbps
Wavelength: 1310nm
Max. Cable Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5~-3dBm
Receiver Sensitivity: < -20dBm
Power Consumption: ≤1W
Receiver Overload: -3dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >9dB
EMC (Electro Magnetic Compatibility): Supported
MTBF (LX): 4,761,904 Hours
Protocols: IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Inventory: There is inventory.
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.

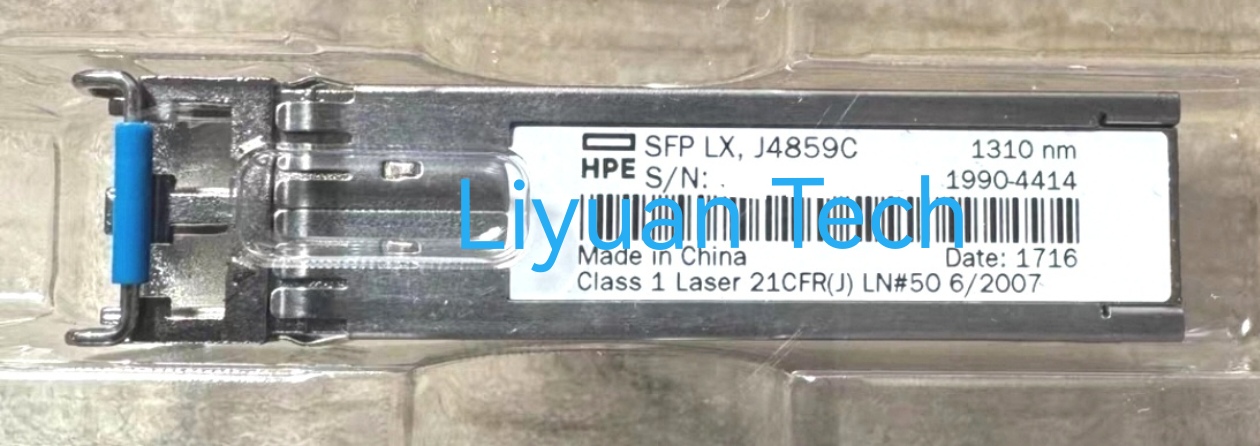

HPE Aruba J4859C 1000BASE-LX SFP Transceiver Module (SMF, 1310nm, 550m/10km, LC)
HPE Aruba J4859C SFP transceiver supports up to 10km link lengths over LC duplex SMF fibre. Each SFP transceiver module is individually tested to be used on a series of HPE switches,
routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links,
Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
In addition to HPE Aruba J4859C , Liyuan Tech supply a wide range of other HPEAruba series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
