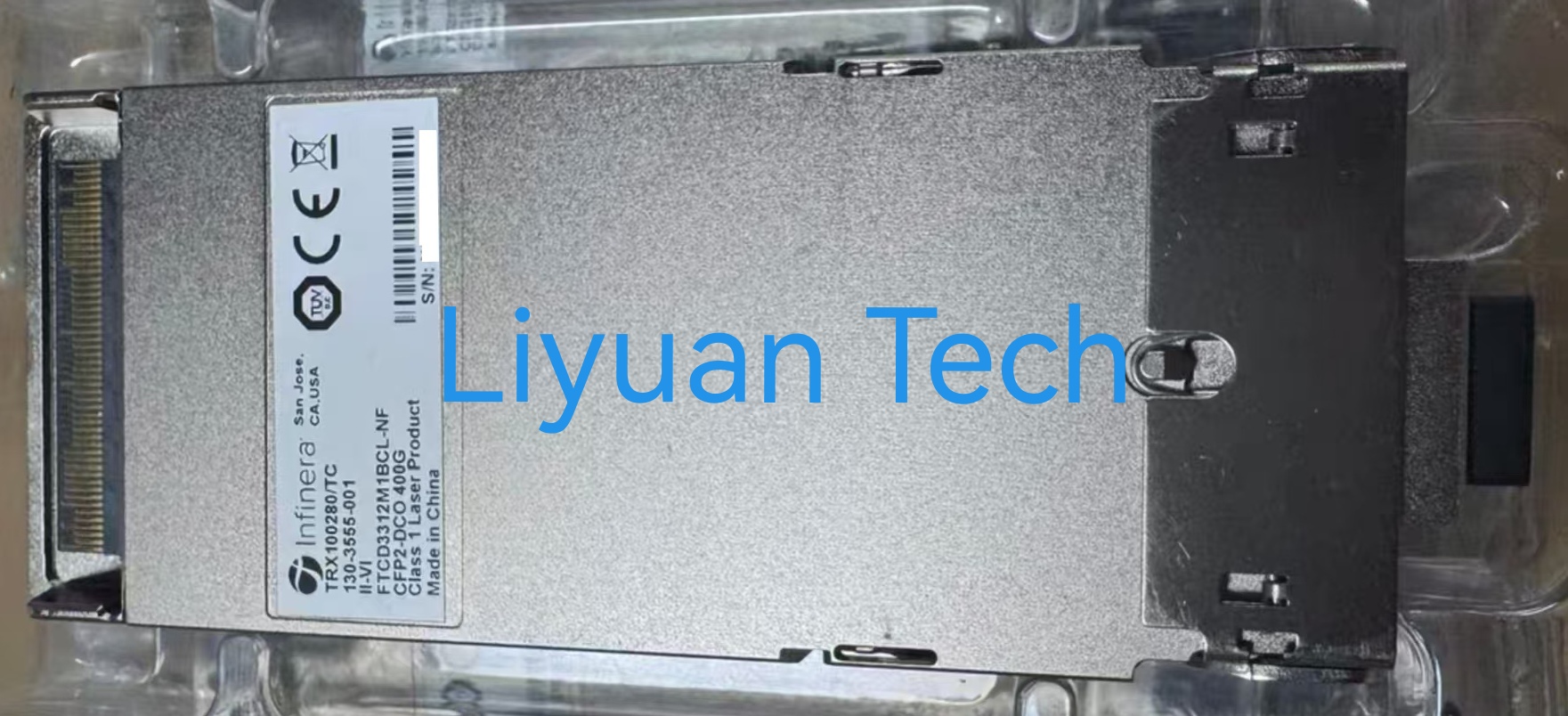

FINISAR FTCD3312M1BCL-NF
- 产品描述：FINISAR FTCD3312M1BCL-NF_CFP2 400G 1000KM 1550NM DOM_liyuan tech
-
Manufacturer: FINISAR
Part Number: FTCD3312M1BCL-NF
Form Factor: CFP2
Data Rate (max): 400 Gb/s
Wavelength: 1550nm
Distance: 1,000 km
Connector: LC
DOM:DOM
Receiver: Coherent
Diagnostics: Digital
Transmitter: Tunable DP-QPSK
Voltage Supply: 3.3
Wavelength: C-Band DWDM Tunable
High End Case Temperature (°C): 70
Low End Case Temperature (°C): 0
1. Product Overview
Model: FTCD3312M1BCL-NF
Form Factor: CFP2 pluggable module
Rate: 400Gbps (Supports flexible rate configuration such as 100G/200G/400G)
Transmission Distance: Up to 1000 kilometers (Long-distance transmission, suitable for backbone networks/DCI)
Wavelength: 1550nm (C-band, supports DWDM multiplexing)
Technology: Based on coherent optical communication technology (DP-16QAM/DP-QPSK modulation, supports programmable modulation formats).
2. Key Features
High-performance DSP: Integrated advanced digital signal processor (DSP) for high sensitivity, dispersion compensation, and nonlinear compensation.
Low power consumption: Optimized design, typically <24W power consumption, suitable for high-density deployment.
Forward Error Correction (FEC): Supports hard decision (HD-FEC) and soft decision (SD-FEC) to enhance long-distance transmission reliability.
Flexible grid: Compatible with 50GHz/75GHz DWDM channel spacing.
Diagnostic functions: Real-time monitoring of optical power, OSNR, bit error rate (BER), and other parameters.
3. Application Scenarios
Long-haul backbone networks: 1000km ultra-long-distance transmission.
Data Center Interconnect (DCI): High-capacity, low-latency interconnection solution.
Metropolitan Area Network/Core Network: Supports 400G upgrade and is compatible with existing OTN/SDH architectures.
4. Physical and Electrical Parameters
Interfaces: Optical interface: Dual-polarization coherent optical interface (supports LC or SC connectors). Electrical interface: CFP2 standard 400GAUI-8 electrical interface.
Operating Temperature: Commercial grade (0°C to +70°C) or industrial grade (-40°C to +85°C, specific to model suffix).
Power Supply Voltage: +3.3V power supply.
5. Compatibility and Certification
Standards: Compliant with IEEE 802.3bs, ITU-T G.709 OTN, and OIF coherent protocols.
Multi-vendor interoperability: Certified by major switch/router vendors such as Cisco, Juniper, and Huawei.
6. Advantages
High integration: CFP2 compact size saves space.
Plug-and-play design: Supports hot plugging for easy maintenance and upgrade.
Future-ready: Supports software-defined tuning to adapt to future network requirements.
In addition to FINISAR FTCD3312M1BCL-NF , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
