Optical transceiver

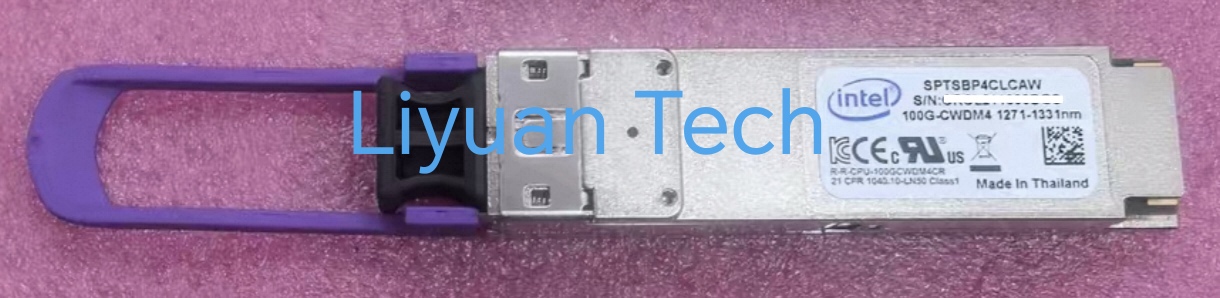

intel SPTSBP4CLCAW SPTSBP3CLCCO
- Product description: intel SPTSBP4CLCAW SPTSBP3CLCCO _100GBASE-CWDM4 QSFP28 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module_liyuan tech
-
Manufacturer: intel
Part number: SPTSBP4CLCAW SPTSBP3CLCCO
Form Factor: QSFP28
Max. Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 1271nm, 1291nm, 1311nm and 1331nm
Max. Cable Distance: 2km
Connector: Duplex LC/UPC
Media: SMF
Transmitter Type: 4 x CWDM DML (DFB)
Receiver Type: PIN
TX Power: -6.5~2.5dBm
Minimum Receiver Power: -11.5dBm
Power Budget: 5dB
Receiver Overload: 2.5dBm
Max. Power Consumption: 3.5W
Extinction Ratio: >3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Modulation (Electrical): 4x 25G NRZ
Modulation (Optical): 4x 25G NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Inbuilt FEC: Yes
Bit Error Ratio (BER): 1E-12
MTBF: 12,800,000 Hours (@40°C, 60% CL)
Protocols: QSFP28 MSA, SFF-8636, IEEE 802.3ba, IEEE 802.3bm, CAUI-4
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Intel SPTSBP4CLCAW SPTSBP3CLCCO 100GBASE-CWDM4 QSFP28 optical transceiver module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
The Intel SPTSBP4CLCAW SPTSBP3CLCCO 100GBASE-CWDM4 QSFP28 transceiver supports 100GBASE Ethernet transmission over single-mode fiber and dual-mode LC connectors,
with a transmission distance of up to 2 kilometers. It operates on four CWDM wavelengths (1271, 1291, 1311, and 1331 nm),
and complies with IEEE 802.3ba/802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636, and ITU-T G.694.2 standards. Digital diagnostics can be accessed via the I2C interface.
With its hot-swappable design and reliable performance, it is highly suitable for data centers, high-performance computing, as well as enterprise core and distribution networks.
In addition to intel SPTSBP4CLCAW SPTSBP3CLCCO , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
