Optical transceiver
intel E10GSFPLR E10GSFPSR
- Product description: intel E10GSFPLR E10GSFPSR _10GBASE-LR SFP+ Dual-Rate 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module_liyuan tech
-
Manufacturer: intel
Part number: E10GSFPLR E10GSFPSR
Form Factor: SFP+
Max. Data Rate: 10Gbps
Wavelength: 1310nm
Max. Transmission Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2~0.5dBm
Receiver Sensitivity: <-14.4dBm
Power Budget: 6.2dB
Receiver Overload: 0.5dBm
Max. Power Consumption: ≤1W
Extinction Ratio: >3.5dB
Core Size: 9/125µm
Modulation: NRZ
Operating Temperature: 0 to 70°C (32 to 158°F)
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C

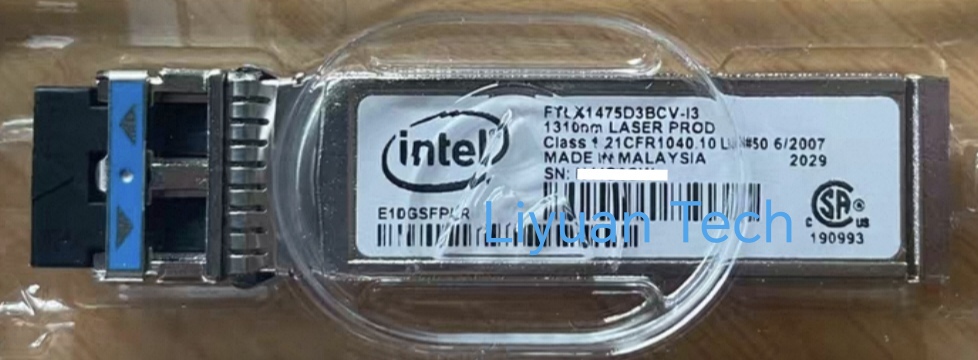

Intel E10GSFPLR E10GSFPSR 1000BASE-LX and 10GBASE-LR SFP+ transceiver module (SMF, 1310nm, 10km, LC, DOM)
The Intel E10GSFPLR E10GSFPSR SFP+ transceiver supports the longest 10-kilometer transmission via OS2 SMF through the LC duplex connector.
This transceiver complies with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, as well as 10G Fibre Channel 1200-SM-LL-L.
Digital diagnostic monitoring is achieved through the 2-wire serial interface specified in SFF-8472.
This 10G SFP+ transceiver features low power consumption and high speed, and is highly suitable for data centers, 10G Ethernet and Fibre Channel, etc.
In addition to intel E10GSFPLR E10GSFPSR , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
