Optical transceiver

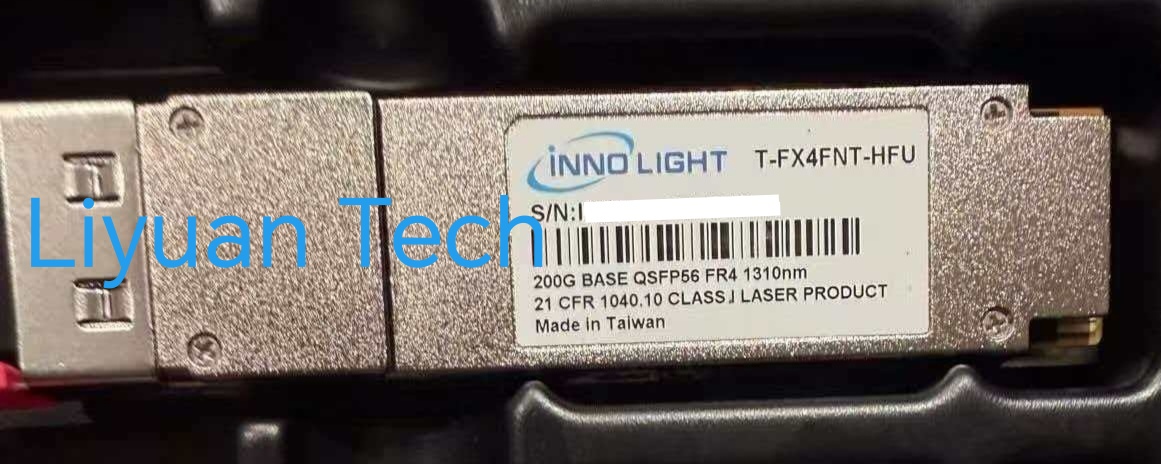

innolight T-FX4FNT-HFU
- Product description: innolight T-FX4FNT-HFU _200Gb QSFP56 1310NM FR4 3km Optical Transceiver _liyuan tech
-
Brand: innolight
Part Number: T-FX4FNT-HFU
Product Category: Optical Transceiver
Form Factor: QSFP56
Data Speed: 200Gb
Wavelength: 1310nm
Reach: 3KM
CWDM: CWDM
DDM: DDM
IEEE802.3bs 200GBASE-FR4 compliant
QSFP56 MSA compliant
4 CWDM lanes MUX/DEMUX design
Supports 212.5Gb/s aggregate bit rate
Up to 3km transmission on single mode fiber (SMF) with FEC
Operating case temperature: 15 to 65°C
Compliant to 200G FR4 OCP Specification
200GAUI-4 electrical interface
Maximum power consumption 6.5W
LC duplex connector
RoHS compliant
Availability: NEW
Lead time-7days
Inventory: 100 units
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Introducing a state-of-the-art product, a 200Gb/s transceiver module designed to cater to 3km optical communication applications. This meticulously designed module adheres to the IEEE802.3bs 200GBASE-FR4 standard.
It operates by converting 4 input channels (ch) of 50Gb/s (PAM4) electrical data into 4 CWDM optical signals, which are then multiplexed into a single channel for 200Gb/s (PAM4) optical transmission. On the receiver side,
it performs the reverse process, optically de-multiplexing a 200Gb/s (PAM4) input into 4 CWDM channel signals and converting them into 4-channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331 nm, aligning with the CWDM wavelength grid defined in ITU-T G.694.2.
This module is equipped with a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize optical dispersion in long-haul systems,
the product requires the application of single-mode fiber (SMF). Host FEC (Forward Error Correction) is also essential to support up to 2km fiber transmission.
Meticulously designed to align with the form factor, optical/electrical connection, and digital diagnostic interface prescribed by the QSFP56 Multi-Source Agreement (MSA),
this product is engineered to withstand the harshest external operating conditions, including extreme temperatures, humidity, and EMI interference.
In addition to innolight T-FX4FNT-HFU , Liyuan Tech has a wide range of other Innolight optical transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
