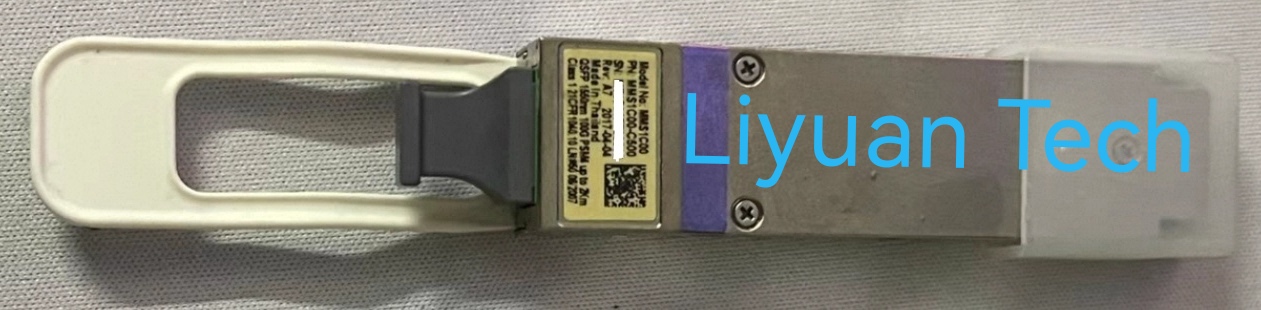

Mellanox MMS1C00-C500
- Product description: Mellanox MMS1C00-C500 _100GbE, QSFP28, MPO, 1550nm PSM4, up to 2km_liyuan tech
-
Manufacturer: Mellanox
Part number: MMS1C00-C500
Form Type: QSFP28
Transceiver Type: PSM4
Speed Description: 100BASE
Reach: 2KM
Wavelength: 1550nm
MPO: MPO
Media: MMF
Connector: LC
DOM: DOM
Vailability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Applications:
MMS1C00-C500
100G Ethernet links
Infiniband QDR and DDR interconnects
Datacenter and Enterprise networking
The Mellanox MMS1C00 transceiver is a 4-channel, pluggable, QSFP28 optical transceiver designed
for use in 100GbE Ethernet applications. This module incorporates Mellanox Silicon Photonics (SiP) and
integrated circuit technology, in order to provide high performance. The transceiver operates over 4-lane
parallel single mode fiber (SMF), using a nominal wavelength of 1550nm, and is SFF-8665 compliant.
The transceiver has a standard QSFP28 connector on the electrical side towards the host system. The
optical interface is composed of four optical channels/fibers in each direction, intended for a parallel
single-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates
up to 25.78125GBd. Rigorous production testing ensures the best out-of-the-box installation experience,
performance and durability.
The MMS1C00 transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature,
laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
Adjustment of the Tx input equalizer, Rx output amplitude/emphasis, and (de)selection of retiming is
controlled via control registers as defined in the SFF-8636 standard.
The MMS1C00 transceiver will work with a fiber plant as specified in the PSM4 MSA
MMS1C00-C500
MMS1C00-C500 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings.
The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels,
each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single mode fiber.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA).
It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module can be managed through the I2C two-wire serial interface.
In addition to Mellanox MMS1C00-C500 , Liyuan Tech supply a wide range of other Cisco series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
