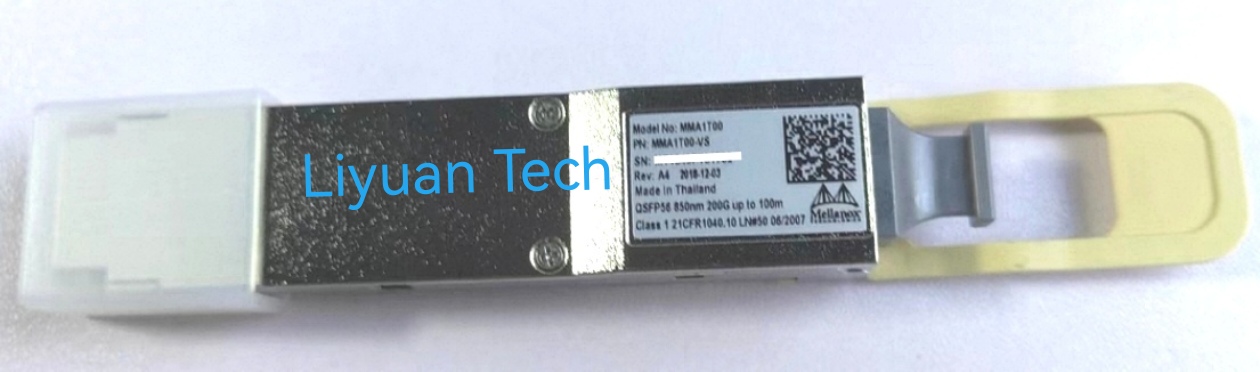

Mellanox MMA1T00-VS

Product description: Mellanox MMA1T00-VS _200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Ethernet Optical Transceiver Module, Breakout to 4 x 50G-SR _liyuan tech
INQUIRY

Brand: Mellanox
Part Number: MMA1T00-VS
Form Factor：QSFP56
Max. Data Rate：200Gbps
Wavelength：850nm
Max. Cable Distance：70m@OM3/100m@OM4
Connector：MPO-12/UPC
Media：MMF
Transmitter Type：VCSEL 850nm
Receiver Type：PIN
TX Power：-6.5~4dBm
Minimum Receiver Power：-6.5dBm
Power Budget：3.5dBm
Receiver Overload：5dBm
Max. Power Consumption：5W
Extinction Ratio: >3dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Modulation (Electrical): 4x50G-PAM4
Modulation (Optical): 4x50G-PAM4
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Inbuilt FEC: No
Protocols: IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636
Application: 200G Ethernet, Data centres Interconnect, High performance computing
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Mellanox MMA1T00-VS 200GBASE-SR4 QSFP56 Ethernet Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
The FS for Mellanox MMA1T00-VS QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fibre (MMF) with a wavelength of 850nm up to 100 metres.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centres, high performance computing networks, enterprise core and distribution layer applications.
In addition to Mellanox MMA1T00-VS , Liyuan Tech supply a wide range of other Mellanox series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
