Mellanox series

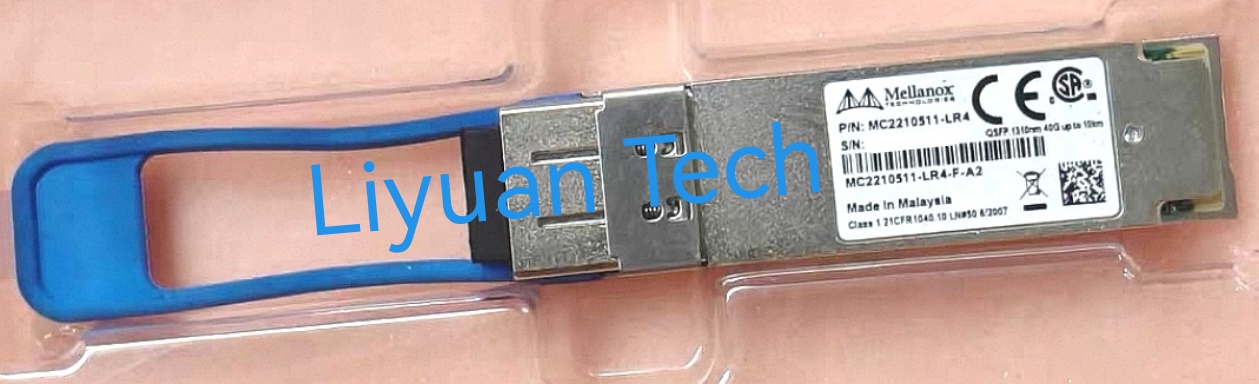

Mellanox MC2210511-LR4
- Product description: Mellanox MC2210511-LR4 _40GBASE-LR4 QSFP+ 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module _liyuan tech
-
Brand: Mellanox
Part Number: MC2210511-LR4
Form Factor：QSFP+
Max. Data Rate：40Gbps
Wavelength：1310nm
Max. Transmission Distance：10km
Connector：Duplex LC
Media：SMF
Transimitter Type：DFB CWDM
Receiver Type：PIN
TX Power：-7~2.3dBm
Receiver Sensitivity：<-11dBm
Power Budget：4dB
Receiver Overload：2.3dBm
Max. Power Consumption：≤3.5W
Core Size：9um
Extinction Ratio：>3.5dB
Modulation：NRZ
Host FEC：Supported
Bit Error Ratio (BER)：1E-12
Operating Temperature：0 to 70°C (32 to 158°F)
Protocols： OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant
Availability: NEW
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Mellanox MC2210511-LR4 40GBASE-LR4 QSFP+ Ethernet Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The Mellanox MC2210511-LR4 QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fibre (SMF) using a wavelength of 1310nm via duplex LC connectors.
This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface,
as specified by the QSFP+ MSA, to allow access to real-time operating parametres. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications,
such as data centres, high-performance computing networks, enterprise core and distribution layer applications.
In addition to Mellanox MC2210511-LR4 , Liyuan Tech supply a wide range of other Mellanox series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
