Optical transceiver

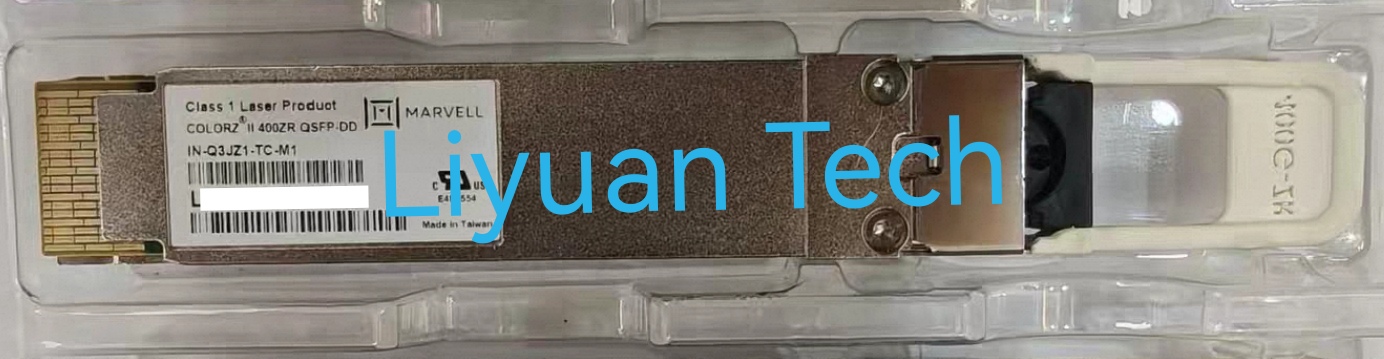

Marvell IN-Q3JZ1-TC-M1
- Product description: Marvell IN-Q3JZ1-TC-M1 _QSFP-DD 400GB ZR 1550NM 120KM SMF DWDM_liyuan tech
-
Brand: Marvell
Part Number: IN-Q3JZ1-TC-M1
Form Factor: QSFP-DD
Max Data Rate: 400Gbps
Wavelength: 1550nm
Max. Cable Distance: 120km
DWDM: DWDM
Connector: Duplex LC/UPC
Media: SMF
Market Segments：Between Data Centers.
Applications: Data Center Interconnects (DCI) Campus Dense Wavelength Division. Multiplexing (DWDM) Metro DWDM up to 120 km – IPoDWDM Point-to-Point links.
Compatible with the QSFP-DD MSA
Compliant with the OIF 400ZR
Implementation Agreement
Compatible with Common Management
Interface Specification (CMIS) Rev. 4.1 and
OIF Coherent CMIS
400 Gbps with single optical carrier (60
Gbaud, 16QAM)
Transmission of 400GbE signals per
wavelength
Fully C-Band tunable
DWDM wavelength spacing options
Advanced 7 nm Coherent DSP technology
Integrated, C-FEC encode/decode
Host and network loopback functionality
Supports IEEE 802.3bs 400GAUI-8
electrical interface
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Transportation method: Air freight
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
Delivery will be made within one week after placing the order.
Description
The COLORZ II 400ZR QSFP-DD is a pluggable Digital Coherent Optics (DCO)
transceiver. This DCO can be plugged into compatible switches and routers for
coherent transmission of 400GbE signals over DWDM links up to 120 km.
The transmitter is tunable over the ITU C-Band 75 GHz grid. The COLORZ II
400ZR QSFP-DD includes a narrow linewidth tunable laser, Silicon Photonics
Modulator ICR, and a DSP.
Optical signals are transmitted and received from the module by standard
duplex SMF and LC receptacles.
The client/electrical interface is compatible with IEEE P802.3bs 8 lane 56G
PAM-4, as used for “gray” datacenter optical transceivers, for example
400GBASE-DR4. COLORZ II 400ZR modules are mechanically and electrically
compatible with the QSFP-DD MSA and utilize a 76-Pad electrical connector.
The COLORZ II 400ZR QSFP-DD utilizes 7 nm coherent DSP technology,
including its low power C-FEC as well as innovative silicon photonics,
driver, and TIA technology to provide coherent transmission
performance previously only available on lower density, higher power,
and higher cost systems.
