Juniper Series

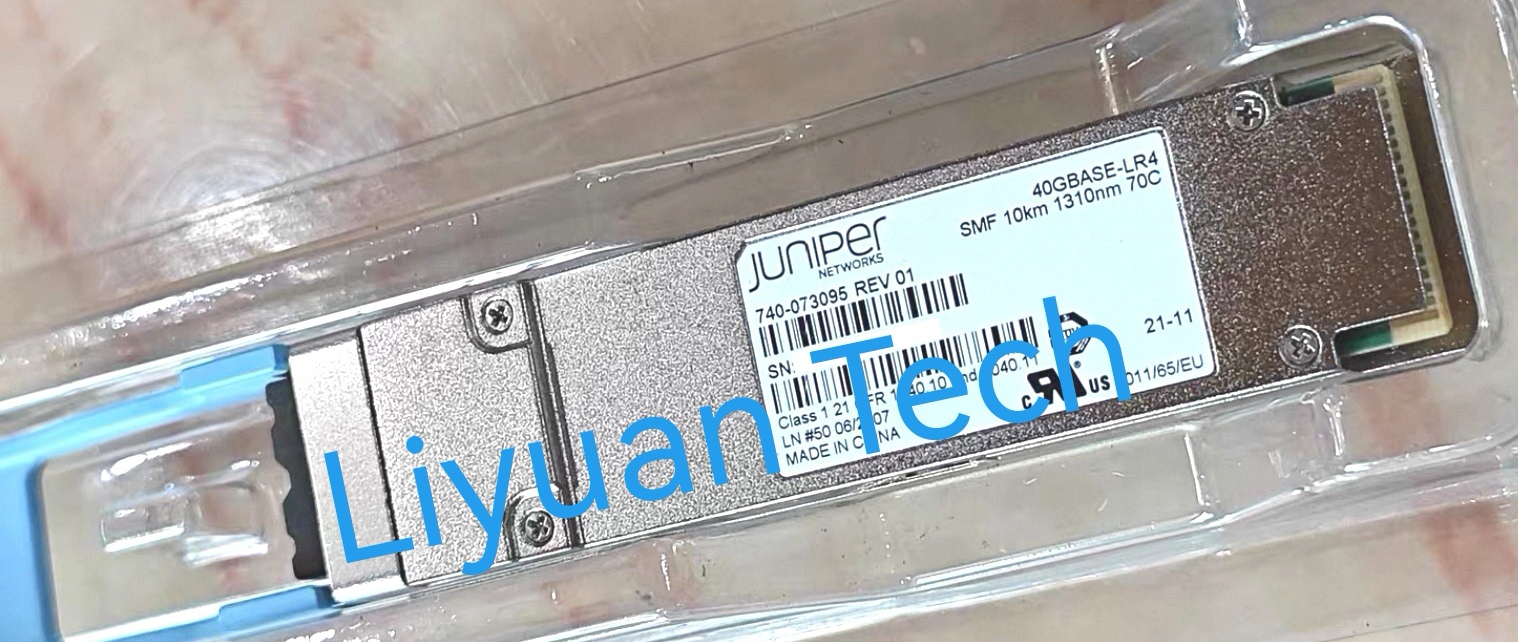

Juniper 740-073095
- Product description: Juniper 740-073095 _QSFP+ 40GBase-LR4 40 Gigabit Pluggable Optics for 10km SMF_liyuan tech
-
Manufacturer: Juniper
Part number: 740-073095
CLEI: CMUIAJ4BAB
Transceiver Type: QSFP+
Speed: 40GB
Wavelength: 1310nm
Distance: 10KM
Media: SMF
Transceiver Type: LR4
DOM: DOM
Monitoring Available: Yes
Digital Optical Monitoring: Yes
Standard: 40GBASE-LR4
Signaling rate, each lane: 40 Gbps (10 Gbps per lane)
Transmitter fibers: Dual
Transmitter wavelengths (range)
Lane 0–1264.5 nm through 1277.5 nm
Lane 1–1284.5 nm through 1297.5 nm
Lane 2–1304.5 nm through 1317.5 nm
Lane 3–1324.5 nm through 1337.5 nm
Receive lane wavelengths (range)
Lane 0–1264.5 nm through 1277.5 nm
Lane 1–1284.5 nm through 1297.5 nm
Lane 2–1304.5 nm through 1317.5 nm
Lane 3–1324.5 nm through 1337.5 nm
Transmitter output power, each lane (minimum): -7.6 dBm (per lane)
Transmitter output power, each lane (maximum): 2.3 dBm
Receiver input power, each lane (minimum): -13.7 dBm
Receiver input power, each lane (maximum): 2.3 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Distance: 10 km
Maximum Power consumption (W): 3.5 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
After placing the order, it will be delivered within one week via DHL international express delivery
In addition to Juniper 740-073095 , Liyuan Tech supply a wide range of other Juniper series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
