Optical transceiver

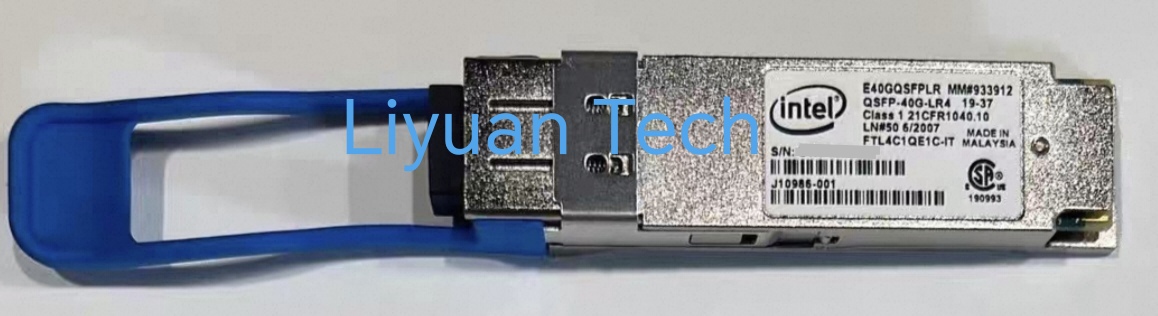

Intel E40GQSFPLR
- Product description: Intel E40GQSFPLR _40GBASE-PLR4 QSFP+ 1310nm 10km DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 10G-LR_liyuan tech
-
Manufacturer: intel
Part number: E40GQSFPLR
Form Factor: QSFP+
Max. Data Rate: 40Gbps
Wavelength: 1310nm
Max. Transmission Distance: 10km
Connector: MTP/MPO-12 Male
Media: SMF
Transimitter Type: 4x DFB
Receiver Type: PIN
TX Power: -6~-1dBm
Receiver Sensitivity: <-14.4dBm
Power Budget: 8.4dB
Receiver Overload: 0.5dBm
Max. Power Consumption: ≤2.5W
Core Size: 9um
Extinction Ratio: >4.5dB
Modulation: NRZ
Host FEC: Supported
Bit Error Ratio (BER): 1E-12
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: 40G Ethernet, MSA Compliant
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Intel E40GQSFPLR 40GBASE-PLR4 QSFP+ optical transceiver module (SMF, 1310nm, 10km, MTP/MPO, DOM)
The Intel E40GQSFPLR QSFP+ module is designed for 40GBASE Ethernet throughput over single-mode fiber (SMF) at a wavelength of 1310nm, with MTP/MPO connectors for 1310nm wavelength.
It provides a high-density, low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA.
