Optical transceiver

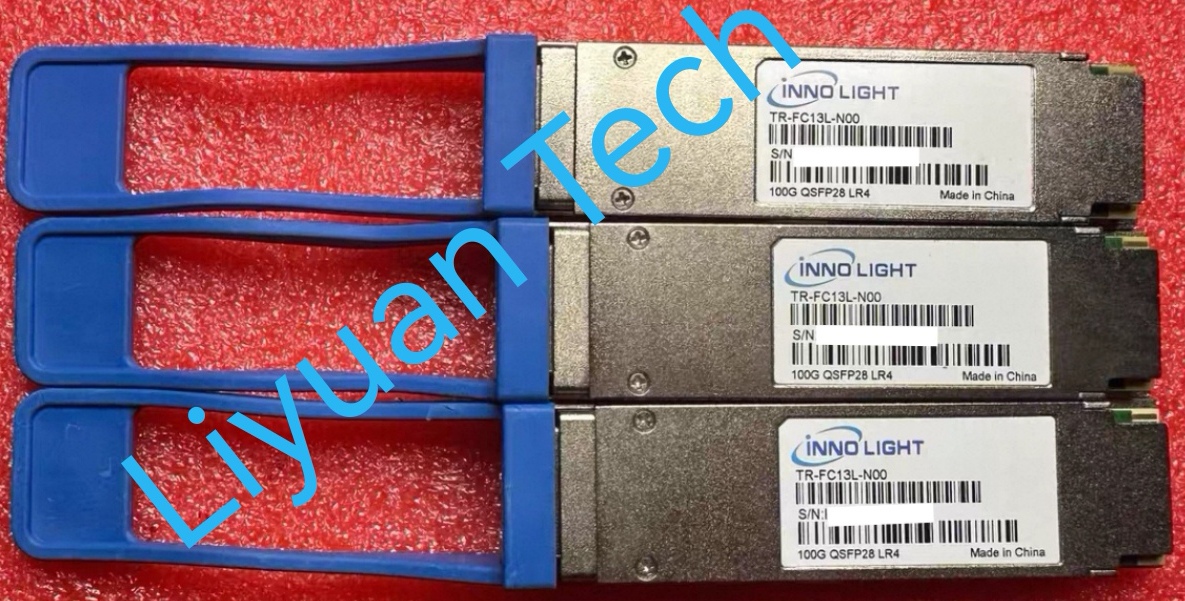

Innolight TR-FC13R-NGL TR-FC13R-H00 TR-FC13L-N00
- Product description: Innolight TR-FC13R-NGL TR-FC13R-H00 TR-FC13L-N00 _QSFP28 100G LR4 1310NM 10km Duplex LC SMF DOM _liyuan tech
-
Manufacturer: Innolight
Part number: TR-FC13R-NGL TR-FC13R-H00 TR-FC13L-N00
Product Category: Optical Transceiver
Form Type: QSFP28
Speed Description: 100GB
Reach: 10km
Wavelength: 1310nm
Media: SMF
Transceiver Type: LR4
Connector: Duplex LC
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Supports 103.1Gb/s aggregate bit rate
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM DFB
TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x25G electrical interface (OIF CEI-28G-VSR)
Maximum power consumption 4.0W
Applications
100GBASE-LR4 Ethernet Links
Duplex LC receptacle
RoHS-6 compliant
Applications
100GBASE-LR4 Ethernet Links
Infiniband QDR and DDR interconnects
Datacenter and Enterprise networking
DOM: DOM
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: CHINA
Operating Temperature: 0 to 70°C
description：QSFP28 100G LR4 1310NM 10km Duplex LC SMF DOM
In addition to Innolight TR-FC13R-NGL TR-FC13R-H00 TR-FC13L-N00 , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
