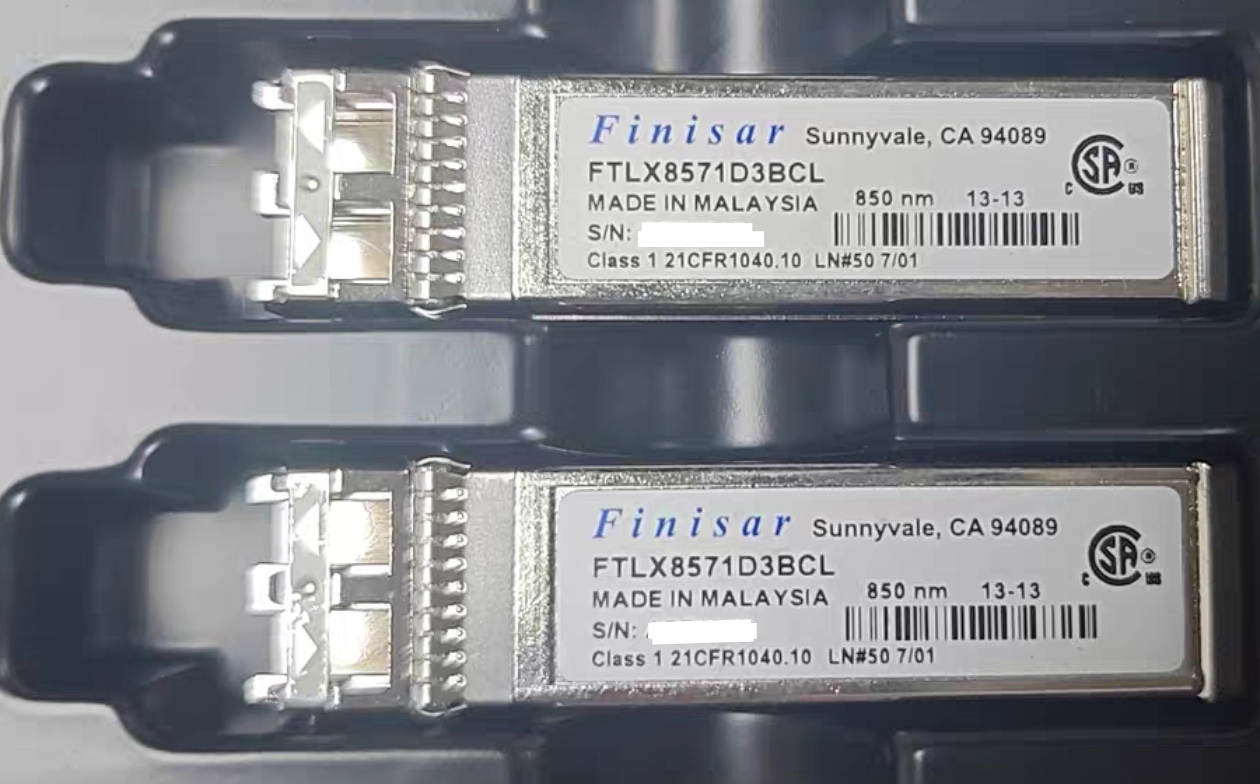

Finisar FTLX8571D3BCL FTLX8571D3BCV

Product description: Finisar FTLX8571D3BCL FTLX8571D3BCV_10GBase-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)_liyuan tech
INQUIRY

Manufacturer: Finisar
Part Number: FTLX8571D3BCL FTLX8571D3BCV
Form Type: SFP+
Speed Description: 10-Gigabit
Reach: 300m
Wavelength: 850nm
Transceiver Type: SR
Media: MMF
Connector: LC
DOM: DOM
Finisar's FTLX8571D3BCL and FTLX8571D3BCV are two high-performance 10GBase-SR SFP+ optical modules specifically designed for short-distance multimode fiber (MMF) transmission.
1. Core Product Characteristics:
1. Physical Layer and Transmission Capacity
Interface and Wavelength: Both use LC duplex interfaces, support 850nm VCSEL lasers, and are compatible with IEEE 802.3ae 10GBASE-SR standard.
Transmission Distance:
FTLX8571D3BCL: Maximum transmission distance of 400 meters on OM4 MMF, 300 meters on OM3 MMF.
FTLX8571D3BCV: 300 meters on OM3 MMF, 400 meters on OM4 MMF.
Power Consumption: All <1W, support hot-swapping, and comply with RoHS standards.
2. Electrical and Environmental Adaptability
Temperature Range:
FTLX8571D3BCL: -5°C to +70°C (commercial extended range).
FTLX8571D3BCV: 0°C to +70°C (standard commercial range).
Anti-interference: Metal casing provides low EMI protection, suitable for industrial environments with complex electromagnetic conditions.
3. Functional Differences
Feature FTLX8571D3BCL FTLX8571D3BCV
Receiving Mechanism Limiter receiver (requires host EDC PHY optimization) Standard PIN receiver, broader compatibility [__LINK_ICON]
DOM (Digital Diagnosis) Supports real-time monitoring of optical power, temperature, and voltage [__LINK_ICON] Supports DOM parameter reading (such as optical power, bias current) [__LINK_ICON]
Protocol Compatibility 10GBASE-SR/SW, 10G Fiber Channel 10GBASE-SR/SW, wireless CPRI (cellular base station) [__LINK_ICON]
Vendor Adaptation Requires manual configuration of host EDC parameters Plug-and-play, compatible with mainstream devices such as Cisco and HUAWEI [__LINK_ICON]
2. Typical Application Scenarios
1. Data Center Short-Distance Interconnection
Server-Switch Connection: In high-density data centers, used to connect blade servers with access layer switches. For example,
AWS data centers use FTLX8571D3BCV to build 10G TOR (Top-of-Rack) networks, supporting high-bandwidth requirements for virtual machine migration and containerized applications.
Storage Area Network (SAN): Connects NAS or SAN storage devices to achieve low-latency data access. For example,
the EMC Unity series storage uses FTLX8571D3BCL module to achieve stable 400-meter transmission on OM4 fiber, supporting real-time writing of video surveillance recordings.
2. Enterprise Campus Network
Backbone Link Upgrade: Replace traditional 1G copper cables to enhance the core layer bandwidth of the campus network. For example,
a financial institution uses FTLX8571D3BCV module to upgrade the connection rate from 1G to 10G between branches and headquarters, supporting high-definition video conferences and big data analysis.
Multi-Floor Interconnection: In office buildings, connects access switches on different floors via OM3 MMF. For example, H3C S5820V3 switch paired with FTLX8571D3BCV achieves 300-meter cross-floor 10G interconnection.
3. Industrial Automation and Intelligent Transportation
Factory Workshop Control: In automotive manufacturing production lines, the -5°C low-temperature adaptability of FTLX8571D3BCL ensures stable operation of equipment in winter,
connects PLC and edge computing nodes, supports real-time quality detection systems.
Rail Transit Communication: Wi-Fi hotspots for high-speed rail carriages are connected to the on-board backbone network. For example,
the low-power design of FTLX8571D3BCV can reduce the load on the on-board power supply, and its metal casing protection meets the requirements for vibration and electromagnetic interference.
4. Cloud Computing and High-Performance Computing
Internal Interconnection of Cloud Platform: In OpenStack or Kubernetes clusters, the FTLX8571D3BCV module supports high-speed transmission of east-west traffic in the virtual network.
For instance, a certain regional node of Alibaba Cloud uses this module to build a 10-Gigabit VXLAN network, supporting the dynamic scheduling of elastic computing resources.
Scientific Research Computing Cluster: Connects high-performance computing (HPC) nodes to achieve data interaction for parallel computing tasks.
For example, a university's meteorological simulation center uses the FTLX8571D3BCL module to implement 400-meter low-latency interconnection on OM4 optical fiber, accelerating climate model computations.
III. Deployment Considerations
1. Fiber Selection:
FTLX8571D3BCL: Preferentially use OM4 MMF for 400-meter transmission, and keep OM3 MMF within 300 meters.
FTLX8571D3BCV: Both OM3/OM4 fibers are acceptable, but OM4 can increase bandwidth margin.
2. Host Compatibility:
FTLX8571D3BCL: Ensure that the host PHY supports the limited receiver (such as Broadcom BCM57810), and configure EDC parameters according to the manufacturer's recommendations.
FTLX8571D3BCV: Plug-and-play, wide compatibility, but some devices (such as certain old Cisco switches) need to upgrade firmware to support DOM functionality.
3. Temperature Management:
In high-temperature environments (such as data center hot aisles), it is recommended to use FTLX8571D3BCL, as its wide temperature range of -5°C to +70°C can adapt to larger temperature differences.
4. Optical Power Testing:
Use an optical power meter (such as EXFO FTB-7200) to verify link loss, ensuring the transmission power is between -9.5dBm and -3dBm, and the receiving sensitivity is better than -12.5dBm.
IV. Compatibility and Certification
Standard Compliance: All comply with SFF-8431/SFF-8432, IEEE 802.3ae 10GBASE-SR, and SFF-8472 DOM interface standards.
In addition to Finisar FTLX8571D3BCL FTLX8571D3BCV , Liyuan Tech supply a wide range of other Finisar Series . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
