Finisar Series

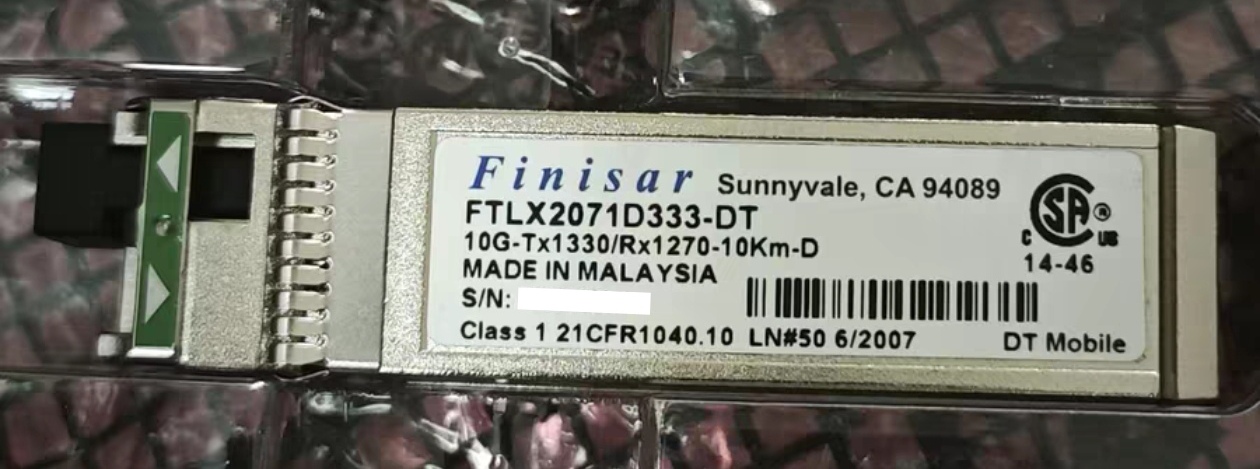

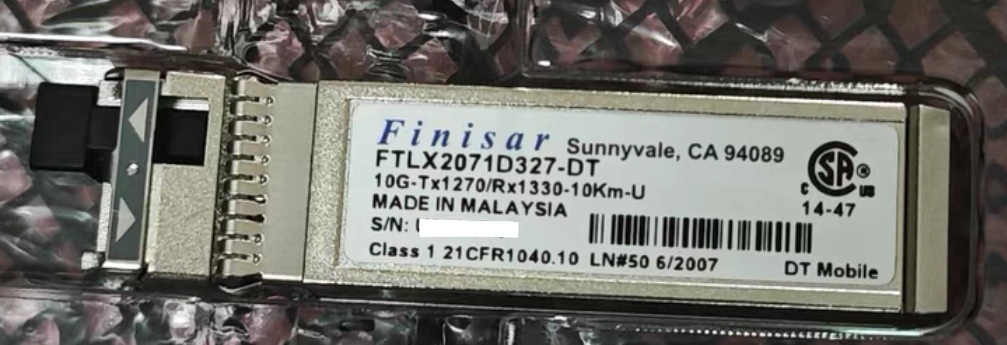

Finisar FTLX2071D327-DT FTLX2071D333-DT

Product description: Finisar FTLX2071D327-DT FTLX2071D333-DT_SFP+ 10GBase-BX-D (Tx1330nm/Rx1270nm, SMF, 10km, LC, DOM, Ind Temp)_liyuan tech
INQUIRY

Manufacturer: Finisar
Part Number: FTLX2071D327-DT FTLX2071D333-DT
Form Type: SFP+
Speed Description: 10GB
Reach: 10km
Wavelength: 1270nm-1330nm
Fiber Type: Singlemode
Media: SMF
DDM/DOM: Support
Operating Supply Voltage: 3.3 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Application: z~~Ethernet
Mounting Style: SMD/SMT
Connector Type: LC
Availability: Used
Lead time-7days
Trading terms: TT
Warranty period: 180days
Country of origin: MY
The Finisar FTLX2071D327 product is a SFP+ (small form-factor pluggable) transceiver, designed for the transmission over a single single-mode fiber (SMF) optical cable.
The minimum guaranteed optical budget for this device is 6.2 decibels, which is sufficient in most cases to achieve a transmission distance of approximately 10 kilometers.
However, distance is merely an easily identifiable indicator parameter. Ultimately, we will calculate the distance based on ,
the minimum optical budget and the average attenuation of optical cables in the industry.
The transceiver of the FTLX2071D327 uses high-quality DFB laser emitters operating at wavelengths of 1270 nanometers and 1330 nanometers, as well as PIN photodiode receivers.
It supports DDM/DOM optical diagnostics, providing diagnostic information about the current operating conditions.
The Finisar FTLX2071D327 transceiver can operate within the industrial temperature range of -45°C to +85°C and is equipped with a single LC interface.
SFP+ supports data rates of 1.25 - 10.31 Gbps, suitable for 10G Ethernet (10.31 Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95 Gbps), and other applications.
The SFP+ single-fiber optical transceiver is a multi-functional module for multiple different locations in today's networks. Therefore,
most popular applications include different Ethernet links in extreme industrial environments, core and backhaul SDH/SONET applications of mobile operators, Ethernet connections, and other optical link data center networks.
In addition to Finisar FTLX2071D327-DT FTLX2071D333-DT , Liyuan Tech supply a wide range of other Finisar Series . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
