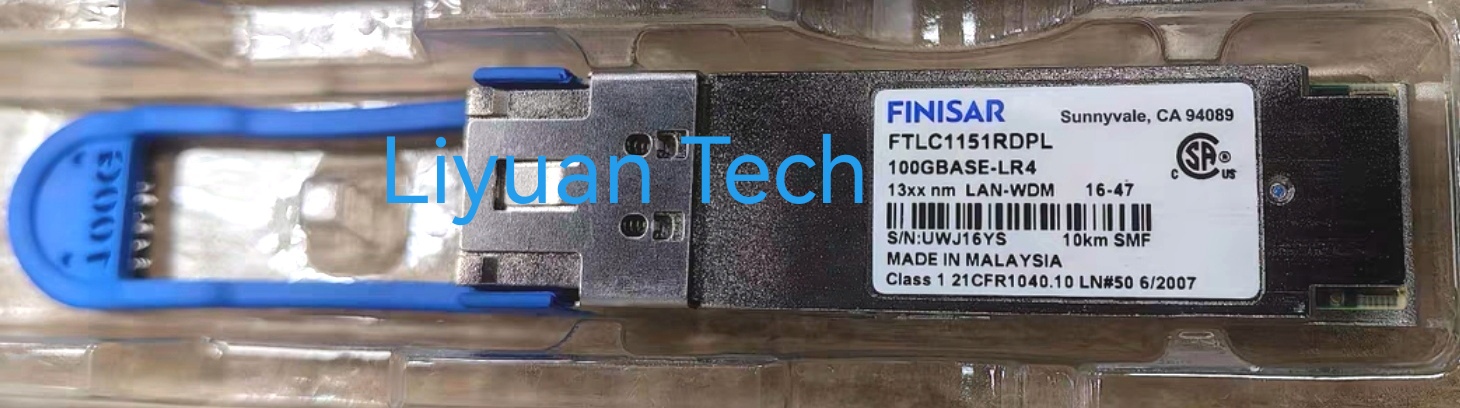

FINISAR FTLC1151RDPL
- Product description: FINISAR FTLC1151RDPL_100GBase-LR4 QSFP28 Transceiver (SMF, 1295nm to 1309nm, 10km, LC, DOM)_Liyuan tech
-
Manufacturer: FINISAR
Part number: FTLC1151RDPL
Form Type: QSFP28
Transceiver Type: LR4
Speed Description: 100-Gigabit
Wavelength: 1295nm to 1309nm
Media: SMF
Reach: 10km
Connector: LC
DOM: DOM
Finisar FTLC1151RDPL is a QSFP28 compliant optical module that is specifically designed for 100G Ethernet applications. Here is its core product description and key features:
Core Product Description:
1. Model: FTLC1151RDPL
2. Packaging: QSFP28 (Quad Small Form-factor Pluggable 28)
3. Rate: 100 Gbps
4. Transmission Distance: 10 kilometers (10KM)
5. Interface Standards:
100GBASE-LR4 (IEEE 802.3bm)
100G CWDM4 (MSA standard)
6. Fiber Type: Single-mode Fiber (SMF)
7. Working Wavelengths:
Using CWDM4 wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (4 channels)
By using wavelength division multiplexing (WDM) technology, 4x25Gbps channels are combined into 100Gbps.
Key Features:
Low Power Consumption: Typical power consumption ≤ 3.5W, suitable for high-density data center deployments.
Digital Diagnostic Function (DDM/DOM):
Supports real-time monitoring of parameters such as temperature, voltage, optical power (Tx/Rx), bias current, etc., facilitating network operation and maintenance.
Hot Swap: Supports replacing the module without interrupting the system.
Operating Temperature:
Commercial (Commercial): 0°C to +70°C
Industrial (Industrial): -40°C to +85°C (specific suffixes need to be confirmed for the model)
Connector: Duplex LC interface.
Compatibility:
Complies with QSFP28 MSA, IEEE 802.3bm, and CWDM4 MSA standards, compatible with mainstream switches/routers.
Typical Application Scenarios:
Data center 100G switch/server interconnection
Enterprise core network backbone
Telecom metropolitan area network (MAN) transmission
High-performance computing (HPC) and storage network
Technical Advantages:
High Reliability: Finisar's mature optoelectronic technology ensures stability in long-distance transmission.
Low Bit Error Rate (BER): Supports ≤ 1E-12** high signal integrity.
Energy-saving Design: Optimizes power consumption and reduces data center cooling pressure.
Certification and Compliance:
Complies with RoHS environmental standards
Passes electrical safety certifications such as CE, FCC, UL, etc.
In addition to FINISAR FTLC1151RDPL , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
