Finisar Series

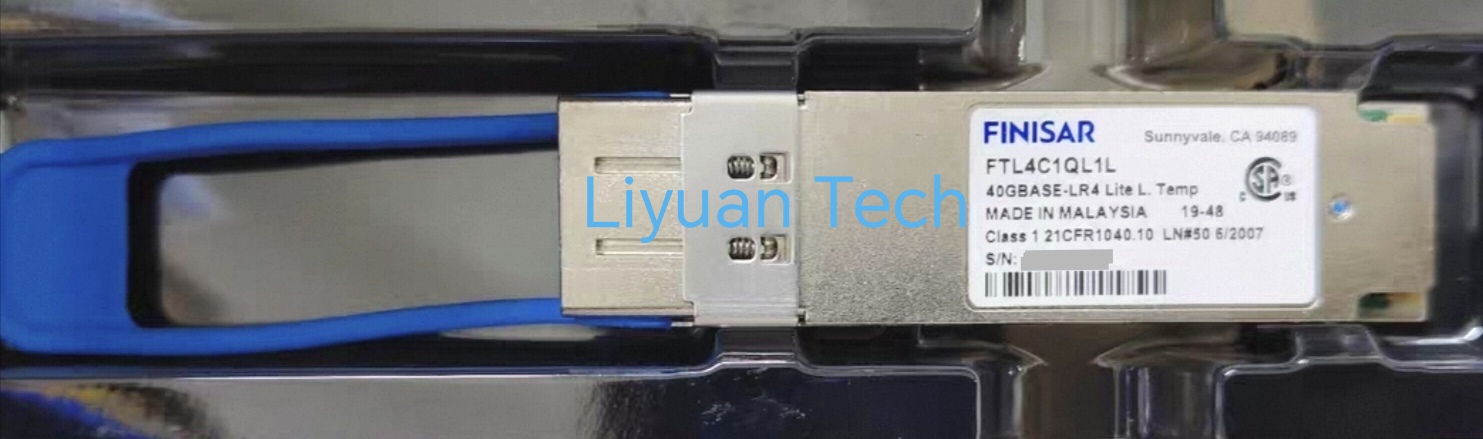

FINISAR FTL4C1QL1L

Product description: FINISAR FTL4C1QL1L _40GB LR4 1310NM 10KM LITE L TEMP DOM_liyuan tech
INQUIRY

Manufacturer: FINISAR
Part number: FTL4C1QL1L
Form Type: QSFP+
Speed Description: 40GB
Wavelength: 1310nm
Reach: 10KM
Media: MMF
Transceiver Type: LR4
DOM: DOM
Hot-pluggable QSFP+ form factor
Supports 41.2 Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Lite case temperature range 15°C to 60°C
Single 3.3V power supply
Maximum link length of 2km on
Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM
transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic
functions, including Tx/Rx power
monitoring
Availability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Finisar’s FTL4C1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit
Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA1,2 and
IEEE 802.3ba 40GBASE-LR43. Digital diagnostics functions are available via an I2C
interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the
RoHS Directive 2011/65/EU4. See Finisar Application Note AN-2038 for more details5.
In addition to FINISAR FTL4C1QL1L , Liyuan Tech supply a wide range of other FINISAR series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
