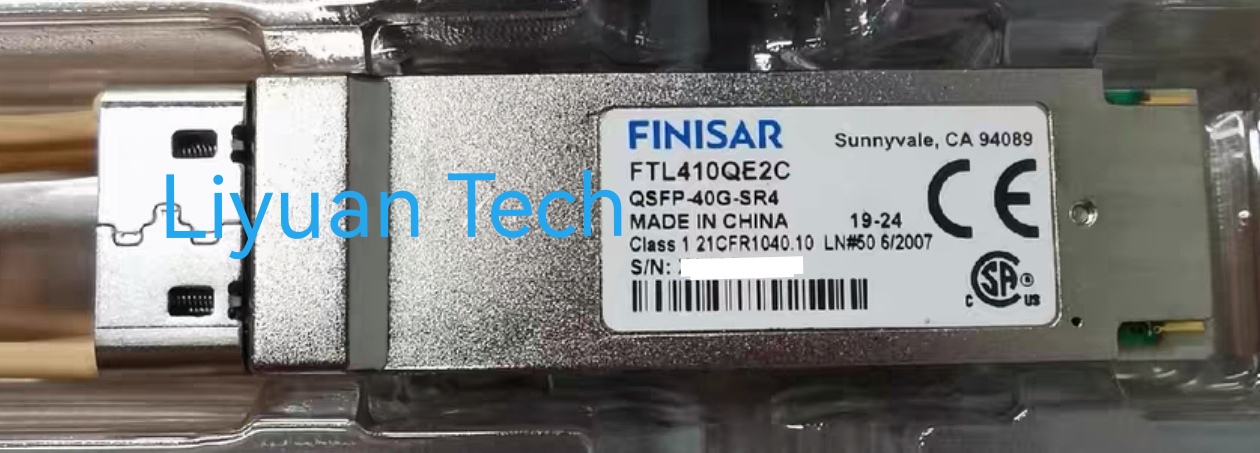

FINISAR FTL410QE2C
- Product description: FINISAR FTL410QE2C_40GBase-SR4 QSFP+ Transceiver (MMF, 850nm, 150m, MPO, DOM)_liyuan tech
-
Manufacturer: FINISAR
Part number: FTL410QE2C
Form Type: QSFP+
Transceiver Type: SR4
Speed Description: 40-Gigabit
Wavelength: 850nm
Media: MMF
Reach: 150m
Connector: MPO
DOM: DOM
Availability: Used
Lead time-7days
Trading terms: TT
Warranty period: 180days
Country of origin: MY
Product Description of Finisar FTL410QE2C QSFP+-40G-150m-850nm Fiber Optic Transceiver Module:
1. Model: FTL410QE2C
2. Form Factor: QSFP+ (Quad Small Form-factor Pluggable Plus)
3. Transmission Rate: 40 Gbps (Supports 4×10Gbps channel aggregation)
4. Wavelength: 850nm (For multimode fiber only)
5. Transmission Distance: Up to 150 meters (Requires OM3 multimode fiber; up to 300 meters with OM4 fiber)
6. Interface: MPO/MTP multi-core interface (12 cores, 4 pairs used in actual operation)
7. Operating Temperature: 0°C to 70°C (Commercial grade)
8. Power Consumption: Typical ≤ 3.5W
9. Compatibility Standards: IEEE 802.3ba 40GBASE-SR4, QSFP+ MSA (Multi-Source Agreement)
10. Laser Type: VCSEL (Vertical Cavity Surface Emitting Laser) array
11. Diagnostic Function: Supports DDM/DOM (Digital Diagnostic Monitoring), enabling real-time monitoring of temperature, voltage, optical power, etc.
Core Features
Parallel optical technology: Achieves 40Gbps bandwidth through 4 independent 10Gbps channels.
Low power consumption design: Suitable for high-density data center deployment.
Hot-swappable support: Modules can be replaced without downtime.
Industrial standard compatibility: Compatible with QSFP+ ports of major switch manufacturers (such as Cisco, Juniper, Arista, etc.).
Typical Application Scenarios
1. Interconnection between data center racks
Connects TOR (Top of Rack) switches with core/aggregation switches to build 40G uplink.
Suitable for high-bandwidth demand scenarios such as server clusters and virtualization platforms.
2. High-performance computing (HPC) and storage networks
Used for high-speed data transmission between NAS/SAN storage devices and computing nodes (such as InfiniBand or Ethernet networks).
3. Enterprise backbone network upgrade
Replaces old 10G links to increase core network throughput and support applications such as 4K video and big data transmission.
4. Cloud service platforms
Underlying connection for virtual machine migration and distributed storage in public/private cloud infrastructure.
5. Short-distance scenarios within a specific range
Short-distance interconnection within 150 meters in data centers or between adjacent racks (OM3 fiber).
For longer distances (such as 300 meters), Finisar FTL410QE2D (OM4 fiber support) can be selected. Notes to be observed
Fiber type: OM3 or OM4 multimode fiber (core diameter 50μm) must be used.
Patch cord interface: The MPO/MTP connectors must ensure correct polarity (Type A/B/C should match the network design).
Heat dissipation management: When deploying in high density, ensure the switch air duct heat dissipation to prevent module overheating
In addition to FINISAR FTL410QE2C , Liyuan Tech supply a wide range of other Finisar Series transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
