Optical transceiver

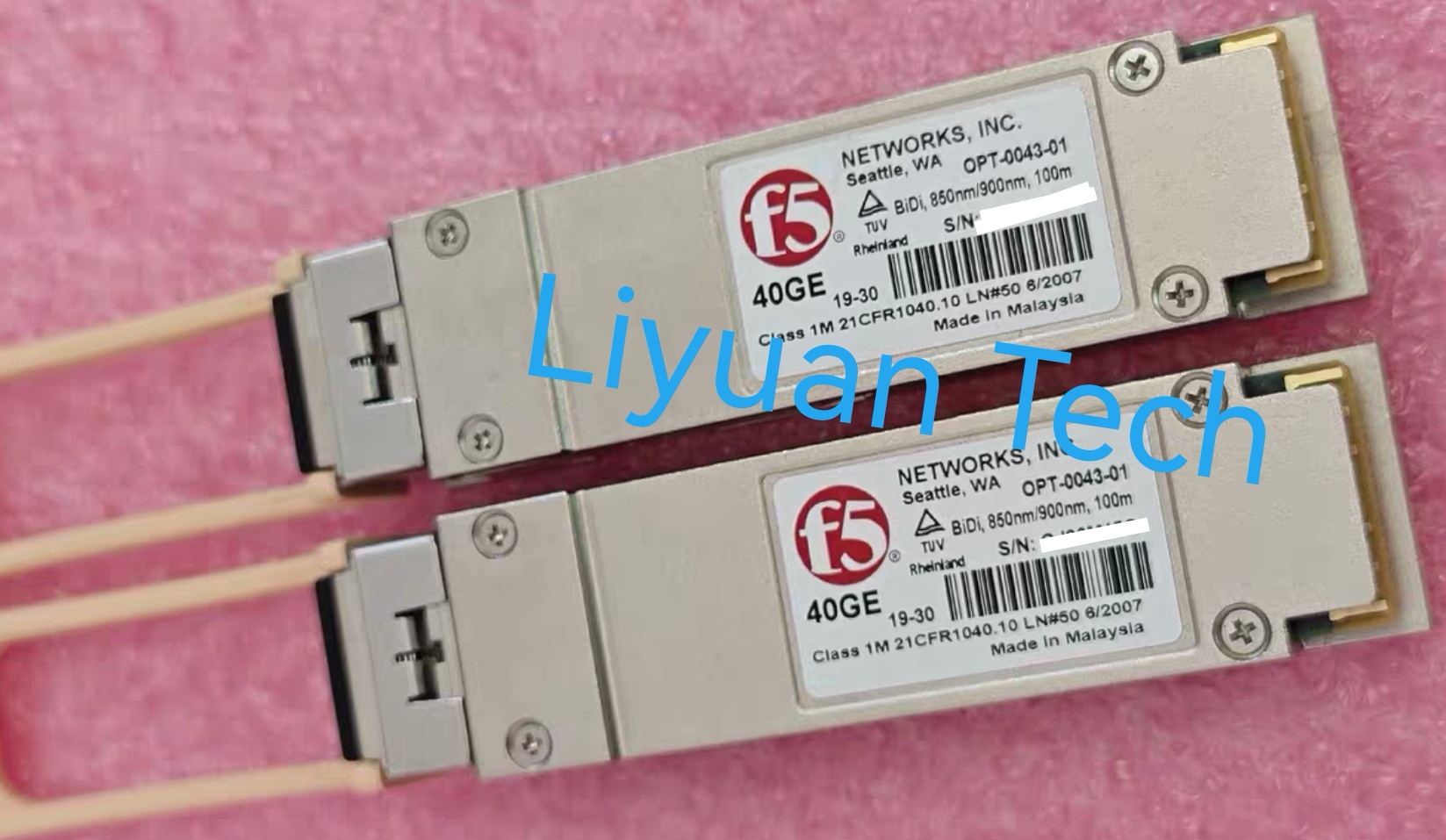

F5 Networks OPT-0043-01
- Product description: F5 Networks OPT-0043-01_QSFP+ 40GB 100M SR 850NM-900NM_liyuan tech
-
Manufacturer: F5 Networks
Part Number: OPT-0043-01
Form Type: QSFP+
Speed Description: 40GB
Reach: 100M
Wavelength: 850nm-900nm
Transceiver Type: SR
MPO: MPO
Connector: LC
DOM: DOM
F5 Networks OPT-0043-01 is a QSFP+ specification 40G multimode fiber transceiver module. According to its model and industry standards, the following is the core product description:
1. Interface type: QSFP+ (Quad Small Form-factor Pluggable Plus)
2. Rate: 40 Gigabit Ethernet (40GbE). This is its main working rate.
3. Compatible standards: IEEE 802.3ba 40GBASE-SR4: This is the core standard it follows, used to achieve 40Gbps transmission on multimode fiber (MMF).
4. Fiber type: Multimode fiber (MMF). It is designed for OM3 or OM4 grade multimode fiber.
5. Wavelength: Usually uses the 850nm window (in line with 40GBASE-SR4 standard). There are 4 independent channels (Tx and Rx each 4 channels) internally.
6. Connector type: MPO/MTP-12 interface (usually a male connector). This is the standard interface for 40GBASE-SR4 modules, one connector carrying 4 pairs of transmission and 4 pairs of reception channels simultaneously.
7. Transmission distance: OM3 fiber: Typical transmission distance can reach 100 meters. OM4 fiber: Typical transmission distance can reach 150 meters.
(Note: This is the general distance for standard 40GBASE-SR4, OPT-0043-01 should follow this specification. The actual distance may vary slightly due to specific fiber quality and environment)
8. "40G-100M" meaning: Here, "100M" almost certainly refers to the farthest transmission distance supported on OM3 fiber, which is 100 meters, rather than referring to a 100Mbps rate.
QSFP+ interface is mainly designed for high-speed connections (10G, 25G, 40G, 100G), physically not supporting direct reduction to 100Mbps Ethernet rate.
Downward compatibility is typically lowest to 1Gbps (through breakout cables divided into 4 SFP+ 10G/1G ports).
9. Main application: For use between F5 Networks' BIG-IP platforms that support QSFP+ interfaces (such as certain iSeries, iHealth series, or other high-end chassis),
or to connect to 40GbE-enabled switches, routers, server network cards, etc., providing short-distance (within data center cabinets or adjacent cabinets) 40Gbps high-speed connections.
10. Key features: Hot-pluggable, low power consumption (in line with QSFP+ specifications)
Supports digital diagnostic monitoring (DDM/DOM) - can monitor parameters such as temperature, voltage, transmit/receive optical power,
etc. of the module through F5 device command lines or management interfaces, facilitating faul tand link health monitoring.
Designed and verified for F5 device compatibility.
