Optical transceiver

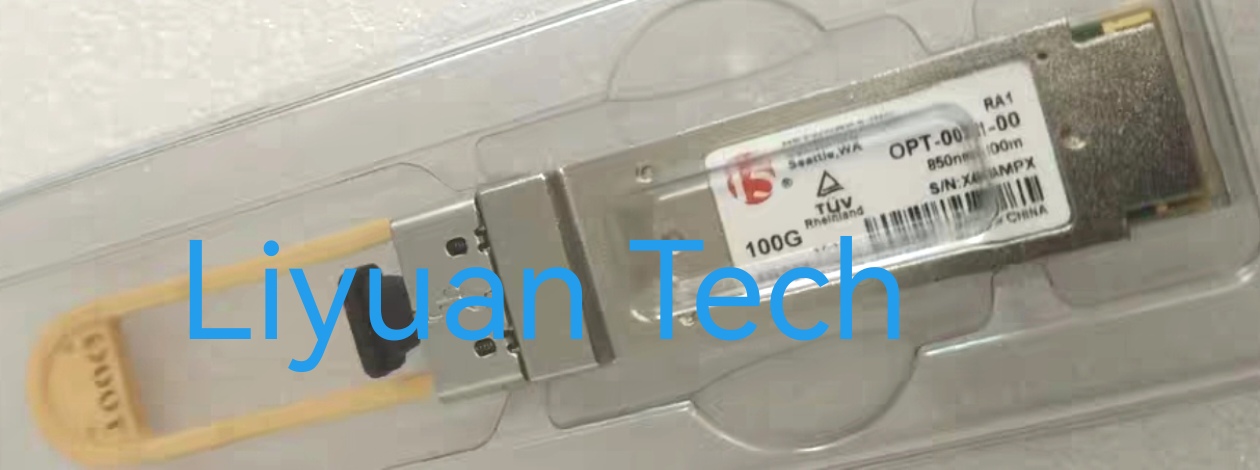

F5 Networks OPT-0031-00

Product description: F5 Networks OPT-0031-00_100GBase-SR4 QSFP28 850nm 100m DOM MPO MMF Optical Transceiver Module_liyuan tech
INQUIRY

Manufacturer: F5 Networks
Part Number: OPT-0031-00
Form Factor: QSFP28
Rate Category: 100GBase
Interface Type: SR4
TX Wavelength: 850nm
Reach: 100m
Cable Type: MMF
Connector: MPO
DDM: Yes
DDM/DOM:Supported
Power Consumption:≤3.5W
Temperature:Standard 0°-70°C
F5 Networks OPT-0031-00 QSFP28-100G-100m-850nm-MPO Description of Fiber Optic Transceiver Products:
1. Product Overview
Model: OPT-0031-00
Type: QSFP28 optical module
Rate: 100Gbps (supports 4x25G NRZ or 100G PAM4 encoding)
Wavelength: 850nm (multi-mode fiber, VCSEL laser)
Transmission distance: Up to 100 meters (OM4 multi-mode fiber, actual distance may vary depending on the fiber type)
Interface: MPO/MTP-12 multi-fiber connector (supports parallel optical transmission)
Protocol compatibility**: Compliant with 100GBASE-SR4, IEEE 802.3bm standards, and compatible with QSFP28 MSA specification
2. Key Features
Application scenarios**:
High-speed interconnection in data centers (such as servers, switches, F5 BIG-IP devices for 100G connections)
Short-distance high-bandwidth transmission (such as rack-to-rack connections within the data center)
Low power consumption: Typical power consumption < 3.5W, supports energy-saving mode (if applicable)
Hot-swappable: Supports hot-swappable (Hot-Pluggable), facilitating maintenance and replacement
Digital diagnostic monitoring (DDM): Provides real-time monitoring functions (such as temperature, optical power, voltage, etc.), facilitating fault troubleshooting
3. Compatibility and Certification
Compatible devices: F5 Networks BIG-IP series (such as chassis-based platform)
Third-party switches (compatibility needs to be confirmed, such as Cisco, Arista, Juniper, etc., mainstream brands with QSFP28 ports)
Certification: Compliant with RoHS, CE, FCC, etc. regulations
4. Fiber Requirements
Fiber type: Multi-mode fiber (OM3/OM4)
Core count: Requires 8-core or 12-core MPO/MTP fiber patch cables (4 channels for transmission + 4 channels for reception)
5. Physical and Environmental Specifications: Operating temperature**: 0°C to 70°C (commercial grade), Storage temperature**: -40°C to 85°C, Humidity: 5% to 85% (non-condensing)
6. Notes
Compatibility verification: It is recommended to confirm the compatibility list of the switch manufacturer when using on non-F5 devices.
Cleaning and maintenance: The MPO interface is susceptible to dust, regular cleaning is required to ensure signal quality.
In addition to F5 Networks OPT-0031-00 , Liyuan Tech supply a wide range of other Optical transceiver transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
