Optical transceiver

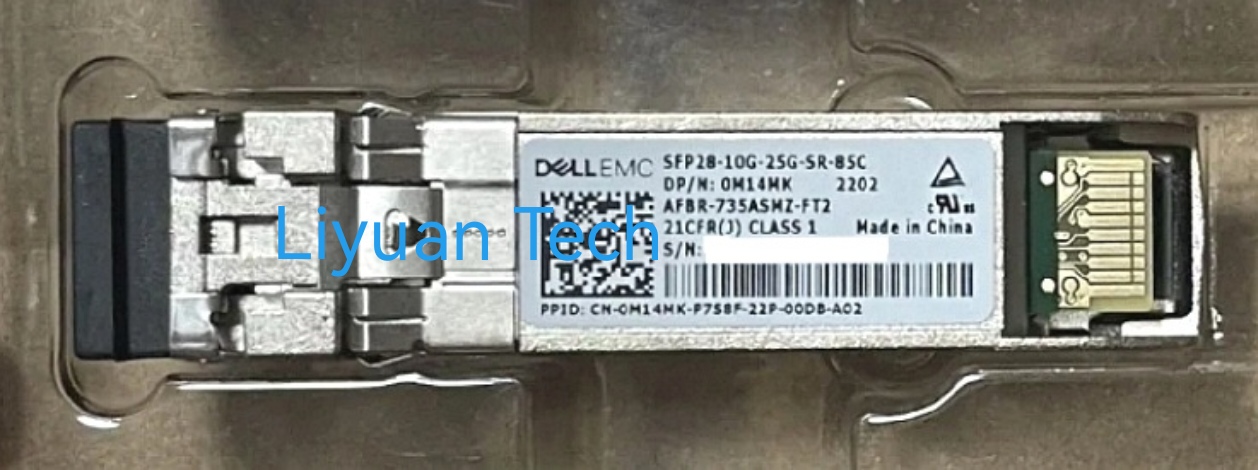

DELL S28-10G-25G-SR-85C
- Product description: DELL S28-10G-25G-SR-85C _25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module_liyuan tech
-
Manufacturer: DELL
Part number: S28-10G-25G-SR-85C
Form Factor: SFP28
Max Data Rate: 25Gbps
Wavelength: 850nm
Max Cable Distance: 100m@OM4/70m@OM3
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.9~1.9dBm
Minimum Receiver Power: <-6dBm
Power Budget: 1.9dB
Receiver Overload: 2.4dBm
Power Consumption: ≤1W
Extinction Ratio: ＞2dB
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Inbuilt FEC: Yes
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: SFF-8472, SFF-8024, SFF-8431, SFF-8432
DDM/DOM: Supported
Core Size: 50/125 µm
Packaging Technology: COB Packaging
Vailability: Used
Lead time-7days
Trading terms: TT wire transfer
Warranty period: 180days
Country of origin: MY
Operating Temperature: 0 to 70°C
Dell SFP28-25G-SR 25GBASE-SR SFP28 optical transceiver module, suitable for data centers and telecommunications (MMF, 850nm, 100m, LC, DOM).
The Dell SFP28-25G-SR SFP28 transceiver uses LC duplex connector, with a connection range of up to 100 meters (70 meters when using OM3) for OM4 MMF.
The SFP28 transceiver module supports operation on the same 1G/10G network wiring infrastructure, with a speed increase of at least 2.5 times. The built-in DDM/DOM function monitors the working status in real time.
This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Additionally, it has interoperability, laying the foundation for the upgrade of the next-generation network.
Each SFP28 transceiver module is individually tested on the target switch and fully complies with SFP28 MSA, RoHS, CPRI and eCPRI standards.
This 25G transceiver has low power consumption and high-speed characteristics, making it ideal for 25G Ethernet, telecommunications and data centers.
In addition to DELL S28-10G-25G-SR-85C , Liyuan Tech supply a wide range of other Optical transceiver . If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
